NexperiaDatasheet (PDF)

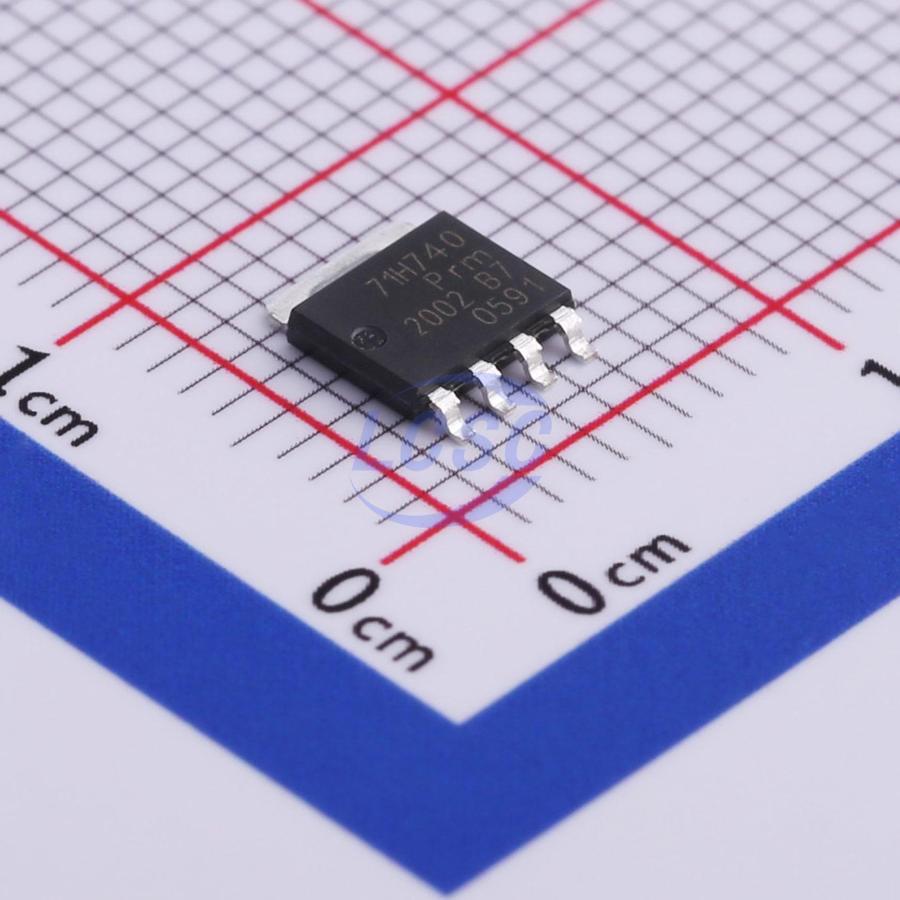

BUK7Y1R7-40HX
N-Channel 40V 120A 294W Surface Mount LFPAK-56-5
LFPAK-56-5ROHS3 CompliantActive
MOSFET N-CH 40V 120A LFPAK-56-5
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK7Y1R7-40HX
- Store part #
- C503616
- Package / case
- LFPAK-56-5
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,579 in stock
#C503616
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.79 | ₹86.79 |
| 10+ | ₹69.83 | ₹698.30 |
| 30+ | ₹61.35 | ₹1,840.50 |
| 100+ | ₹52.85 | ₹5,285.00 |
| 500+ | ₹47.85 | ₹23,925.00 |
| 1,500+ | ₹45.25 | ₹67,875.00 |
1 × ₹86.79
₹86.79
excl. GST
₹102.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK7Y1R7-40HX
₹86.79 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 4.095nF
- Pd - Power Dissipation
- 294W
- Reverse Transfer Capacitance (Crss)
- 178pF
- RDS(on)
- 1.35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.122 g
Overview
Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package. This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and endurance.
Applications
- 12 V automotive systems
- Motors, lamps and solenoid control
- Start-Stop micro-hybrid applications
- Transmission control
- Ultra high performance power switching
Key features
- Fully automotive qualified to AEC-Q101: 175 °C rating suitable for thermally demanding environments
- Trench 9 Superjunction technology: Reduced cell pitch enables enhanced power density and efficiency with lower R o s o n in same footprint Improved SOA and avalanche capability compared to standard TrenchMOS Tight V G S(t h) limits enable easy paralleling of MOSFETs
- LFPAK Gull Wing leads: High Board Level Reliability absorbing mechanical stress during thermal cycling, unlike traditional QFN packages Visual (AOI) soldering inspection, no need for expensive x-ray equipment Easy solder wetting for good mechanical solder joint
- LFPAK copper clip technology: Improved reliability, with reduced R t h and RDSon Increases maximum current capability and improved current spreading
