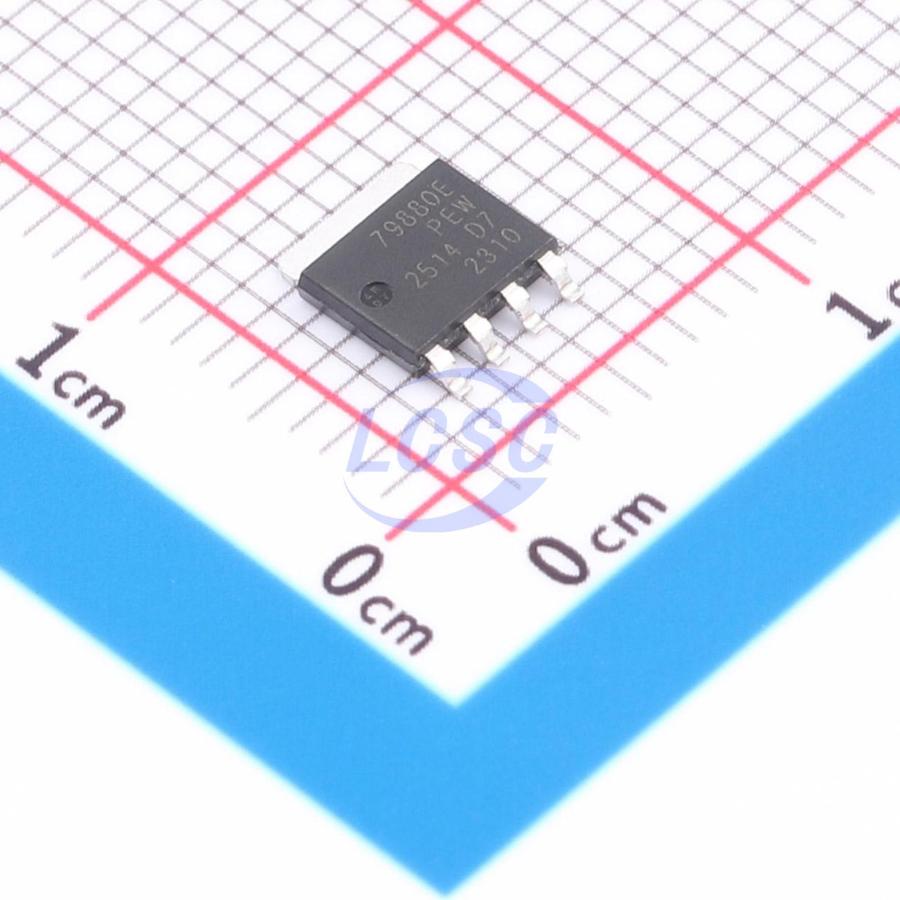

BUK7Y98-80EX
37W 80V 12.3A 98mΩ@10V 1 N-channel N-Channel SOT-669 Single FETs, MOSFETs RoHS
SOT-669ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK7Y98-80EX
- Store part #
- C549931
- Package / case
- SOT-669
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C549931
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.77 | ₹158.85 |
| 50+ | ₹24.81 | ₹1,240.50 |
| 150+ | ₹21.83 | ₹3,274.50 |
| 1,500+ | ₹18.11 | ₹27,165.00 |
| 3,000+ | ₹16.46 | ₹49,380.00 |
| 4,500+ | ₹15.47 | ₹69,615.00 |
5 × ₹31.77
₹158.85
excl. GST
₹187.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK7Y98-80EX
₹158.85 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 56pF
- Ciss-Input Capacitance
- 498pF
- Pd - Power Dissipation
- 37W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 12.3A
- Reverse Transfer Capacitance (Crss)
- 62pF
- RDS(on)
- 98mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
Standard level N-channel MOSFET using TrenchMOS technology in an LFPAK56 (Power SO8) package. This product has been designed and qualified to AEC Q101 standards for high-performance automotive applications.
Applications
- 12 V, 24 V, and 48 V automotive systems
- Motor, lamp, and solenoid control
- Transmission control
- Ultra-high-performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- 175°C temperature rating for high thermal demand environments
- True standard-level gate; VGS(th) rated above 1 V at 175°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK7Y19-100EX#C549914Nexperia · SOT-669 | Nexperia | SOT-669 | 32 | ₹304.29 · 32 in stock | View |
 | BUK7Y53-100B,115#C549926Nexperia · SOT-669 | Nexperia | SOT-669 | 99 | ₹134.01 · 99 in stock | View |
 | BUK7Y41-80EX#C549923Nexperia · SOT-669 | Nexperia | SOT-669 | 42 | ₹109.33 · 42 in stock | View |
 | BUK7Y7R8-80E#C549929Nexperia · SOT-669 | Nexperia | SOT-669 | 18 | ₹343.91 · 18 in stock | View |
 | PSMN025-80YLX#C553202Nexperia · SOT-669 | Nexperia | SOT-669 | 94 | ₹120.42 · 94 in stock | View |
