NexperiaDatasheet (PDF)

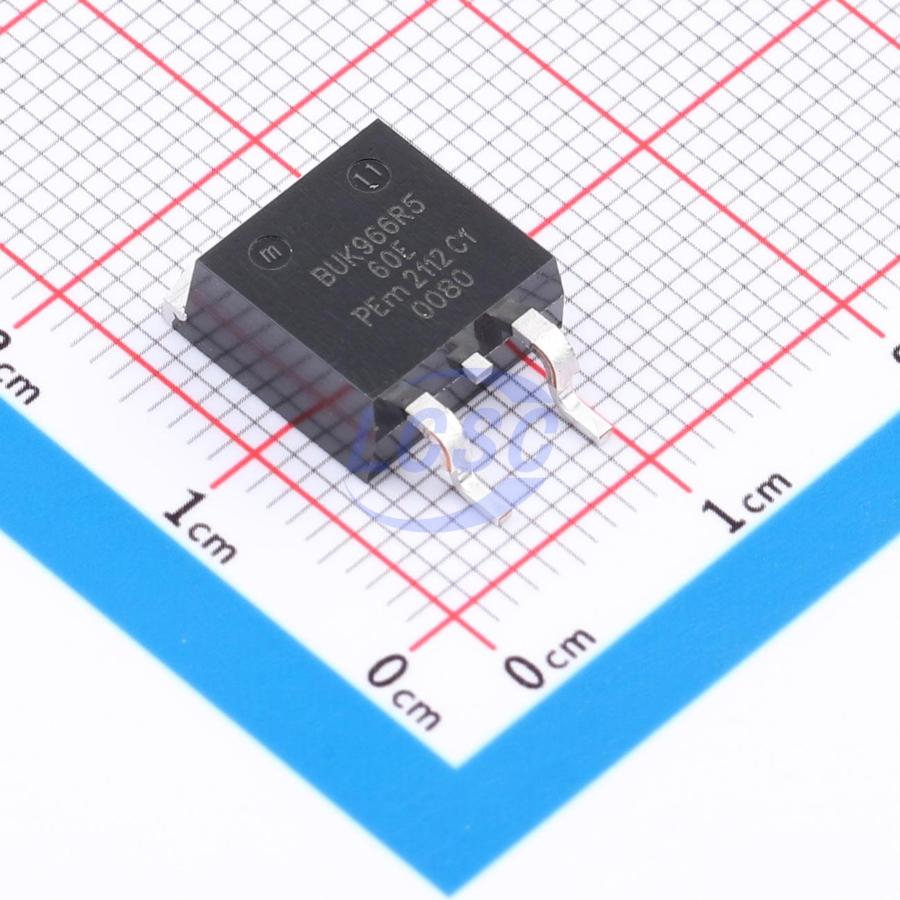

BUK966R5-60E,118
182W 60V 75A 5.9mΩ@10V 1 N-channel N-Channel D2PAK Single FETs, MOSFETs RoHS
D2PAKROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK966R5-60E,118
- Store part #
- C549987
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C549987
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹317.97 | ₹317.97 |
| 10+ | ₹310.38 | ₹3,103.80 |
| 30+ | ₹305.16 | ₹9,154.80 |
| 100+ | ₹299.95 | ₹29,995.00 |
1 × ₹317.97
₹317.97
excl. GST
₹375.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
BUK966R5-60E,118
₹317.97 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 439pF
- Ciss-Input Capacitance
- 6.9nF
- Pd - Power Dissipation
- 182W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 238pF
- RDS(on)
- 5.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.81 g
Overview
Logic-level N-channel MOSFET using TrenchMOS technology in an SOT404 package. This product has been designed and qualified to AEC Q101 standards for high-performance automotive applications.
Applications
- 12 V automotive systems
- Motor, lamp, and solenoid control
- Start-stop micro-hybrid applications
- Transmission control
- Ultra-high-performance power switching
Key features
- AEC Q101 qualified
- Repetitive avalanche rated
- 175°C rated for high thermal demand environments
- True logic level gate with VGS(th) rated above 0.5 V at 175°C
