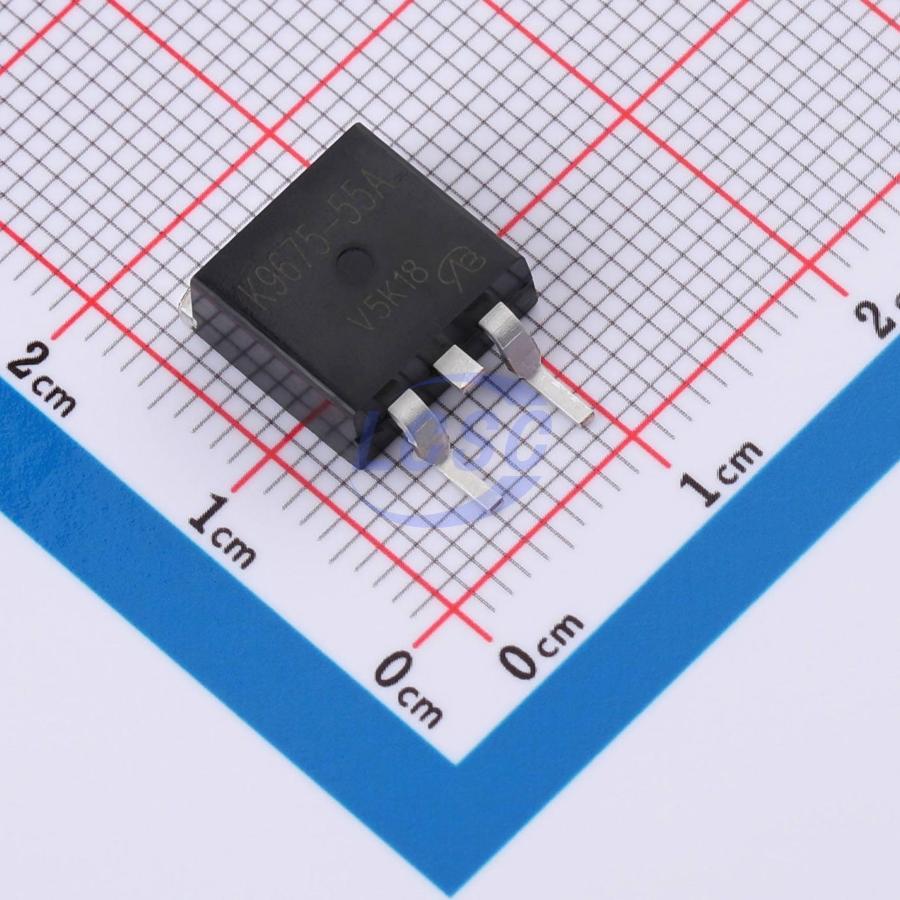

BUK9675-55A,118-VB
150W 60V 50A 32mΩ@10V 1 N-channel N-Channel TO-263 Single FETs, MOSFETs
TO-263RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK9675-55A,118-VB
- Store part #
- C52191034
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191034
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.38 | ₹110.38 |
| 10+ | ₹91.00 | ₹910.00 |
| 50+ | ₹81.42 | ₹4,071.00 |
| 100+ | ₹64.88 | ₹6,488.00 |
| 500+ | ₹59.22 | ₹29,610.00 |
| 1,000+ | ₹56.17 | ₹56,170.00 |
1 × ₹110.38
₹110.38
excl. GST
₹130.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK9675-55A,118-VB
₹110.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1nF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 150W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 32mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.62 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Surface mount
- Available in tape and reel packaging
- Dynamic dV/dt rated
- Logic level gate drive
- Fast switching
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK7675-55A-VB#C693134VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 61 | ₹95.22 · 61 in stock | View |
 | BUK9675-55A-VB#C22389560VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹96.00 · 5 in stock | View |
 | HUF76419S3ST-VB#C22389730VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 9 | ₹96.00 · 9 in stock | View |
 | HUFA76419S3ST-VB#C22389834VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹96.00 · 10 in stock | View |
 | IRFZ14SPBF-VB#C29779549VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 15 | ₹110.62 · 15 in stock | View |
