NexperiaDatasheet (PDF)

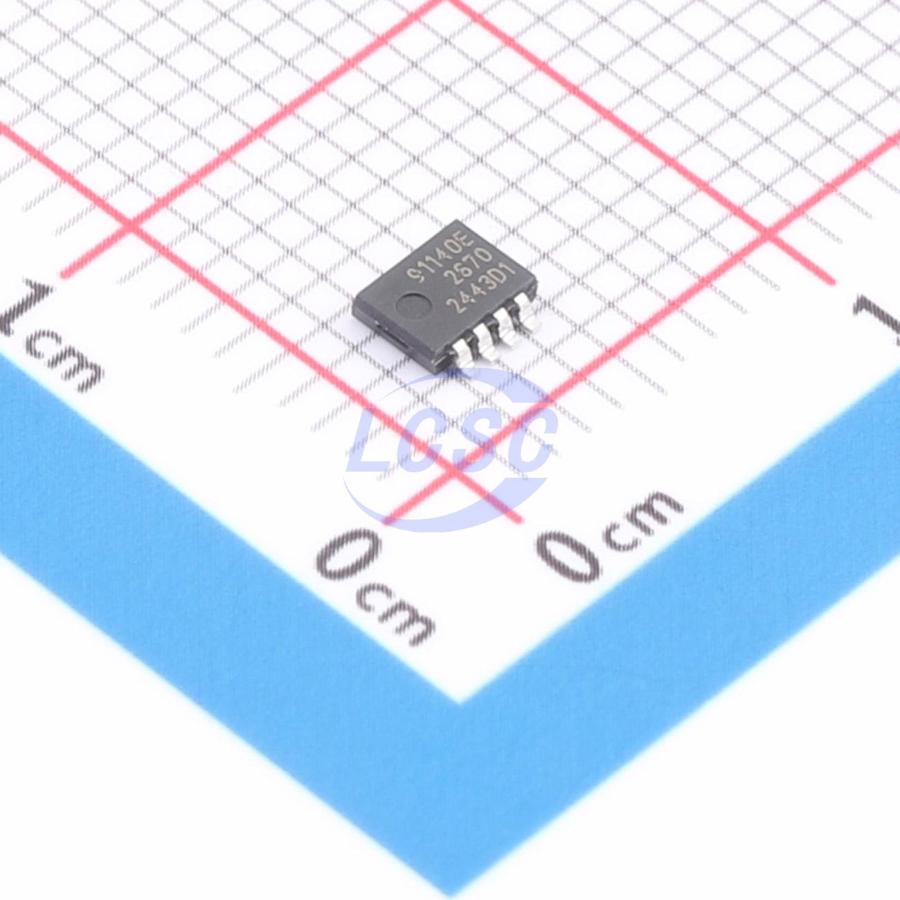

BUK9M11-40EX
62W 40V 53A 9mΩ@10V 1 N-channel N-Channel SOT-1210 Single FETs, MOSFETs RoHS
SOT-1210ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK9M11-40EX
- Store part #
- C550007
- Package / case
- SOT-1210
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C550007
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.06 | ₹106.06 |
| 10+ | ₹103.68 | ₹1,036.80 |
| 30+ | ₹101.94 | ₹3,058.20 |
| 100+ | ₹100.20 | ₹10,020.00 |
1 × ₹106.06
₹106.06
excl. GST
₹125.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK9M11-40EX
₹106.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 175pF
- Ciss-Input Capacitance
- 1.721nF
- Pd - Power Dissipation
- 62W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 53A
- Reverse Transfer Capacitance (Crss)
- 125pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13.4nC@5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
Logic level N-channel MOSFET using TrenchMOS technology in LFPAK33 (Power33) package. This product is designed and qualified to AEC Q101 standard for high-performance automotive applications.
Applications
- 12 V automotive systems
- Motor, lamp, and solenoid control
- Transmission control
- Ultra-high-performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- 175°C temperature rating for high thermal demand environments
- True logic-level gate with VGS(th) rated above 0.5 V at 175°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9M7R2-40EX#C550026Nexperia · SOT-1210 | Nexperia | SOT-1210 | 99 | ₹269.32 · 99 in stock | View |
| PSMN8R5-40MSDX#C553342Nexperia · SOT-1210 | Nexperia | SOT-1210 | 99 | ₹105.42 · 99 in stock | View | |
| BUK9M4R3-40HX#C550020Nexperia · SOT-1210 | Nexperia | SOT-1210 | 5 | ₹241.90 · 5 in stock | View | |
 | PSMN3R3-40MLHX#C553275Nexperia · SOT-1210 | Nexperia | SOT-1210 | 79 | ₹264.76 · 79 in stock | View |
 | BUK7M5R0-40HX#C549892Nexperia · SOT-1210 | Nexperia | SOT-1210 | 96 | ₹155.96 · 96 in stock | View |
