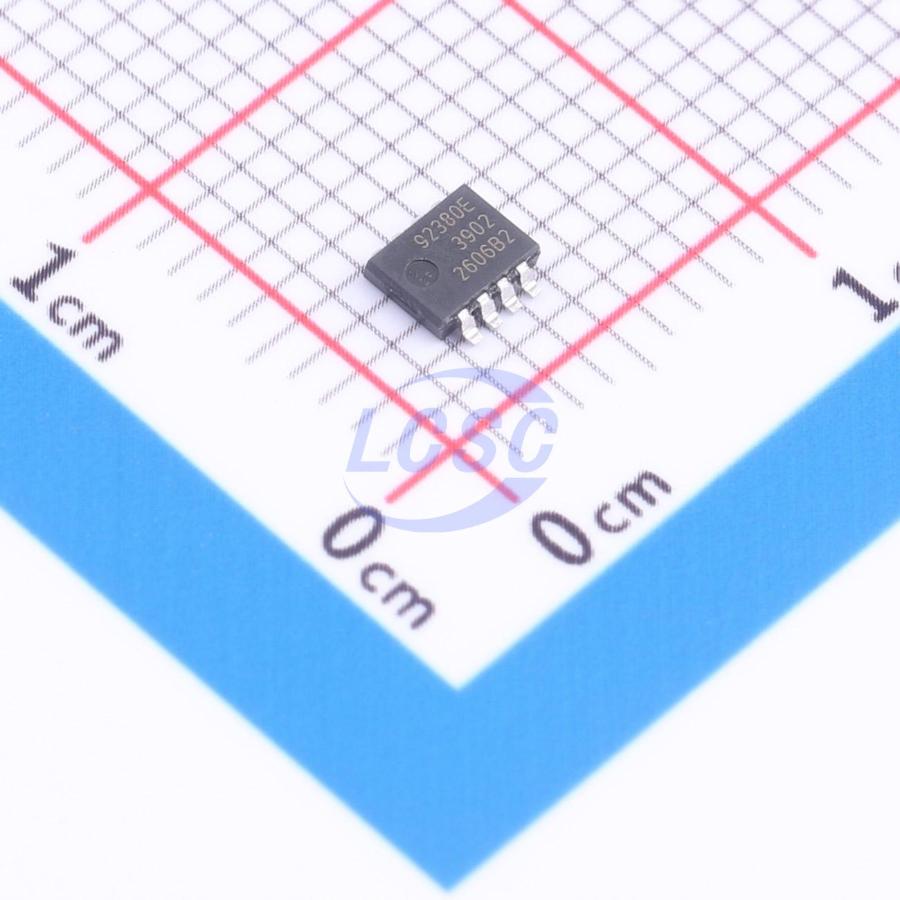

BUK9M23-80EX
80V 37A 79W 23mΩ@5V 1 N-channel SOT-1210 Single FETs, MOSFETs RoHS
SOT-1210ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK9M23-80EX
- Store part #
- C458191
- Package / case
- SOT-1210
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C458191
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.66 | ₹139.66 |
| 10+ | ₹136.19 | ₹1,361.90 |
| 30+ | ₹134.01 | ₹4,020.30 |
| 100+ | ₹131.63 | ₹13,163.00 |
1 × ₹139.66
₹139.66
excl. GST
₹164.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK9M23-80EX
₹139.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 37A
- Ciss-Input Capacitance
- 2.808nF
- Pd - Power Dissipation
- 79W
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 23mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
Logic-level N-channel MOSFET using TrenchMOS technology in LFPAK33 (Power33) package. Designed and qualified to AEC Q101 standard for high-performance automotive applications.
Applications
- 12 V, 24 V, and 48 V automotive systems
- Motor, lamp, and solenoid control
- Transmission control
- Ultra-high-performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- 175°C temperature rating for high thermal demand environments
- True logic-level gate with VGS(th) rated above 0.5 V at 175°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BUK7M17-80EX#C549886Nexperia · SOT-1210 | Nexperia | SOT-1210 | On request | ₹148.74 · 0 in stock | View | |
