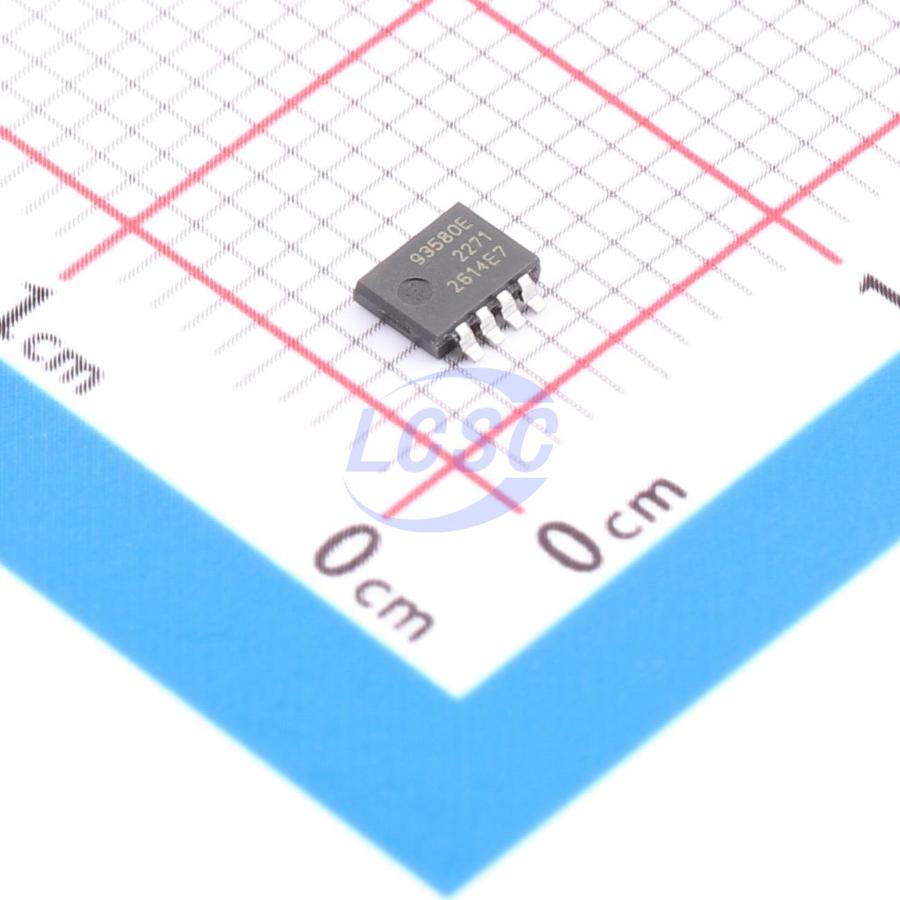

Nexperia

BUK9M35-80EX

62W 80V 26A 28mΩ@5V 1 N-channel N-Channel SOT1210 Single FETs, MOSFETs RoHS

SOT1210ROHS3 CompliantActive

MOSFET N-CH 80V 26A SOT1210

Manufacturer: Nexperia
Manufacturer part #: BUK9M35-80EX
Store part #: C550017
Package / case: SOT1210
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

483 in stock

#C550017

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹154.86	₹154.86
10+	₹127.93	₹1,279.30
30+	₹113.16	₹3,394.80
100+	₹96.66	₹9,666.00
500+	₹89.05	₹44,525.00
1,500+	₹85.80	₹1,28,700.00

Quantity (min 1)

1 × ₹154.86

₹154.86

excl. GST

₹182.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

BUK9M35-80EX

₹154.86 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 106pF
Ciss-Input Capacitance: 1.804nF
Pd - Power Dissipation: 62W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 80V
Current - Continuous Drain(Id): 26A
Reverse Transfer Capacitance (Crss): 71pF
RDS(on): 28mΩ@5V
Number: 1 N-channel
Gate Charge(Qg): 13.5nC@5V
Vgs: ±10V
Gate Threshold Voltage (Vgs(th)): 2.1V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.099 g

Overview

Logic level N-channel MOSFET in an LFPAK33 (Power33) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.

Applications

12 V, 24 V and 48 V automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching

Key features

Q101 compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
