NexperiaDatasheet (PDF)

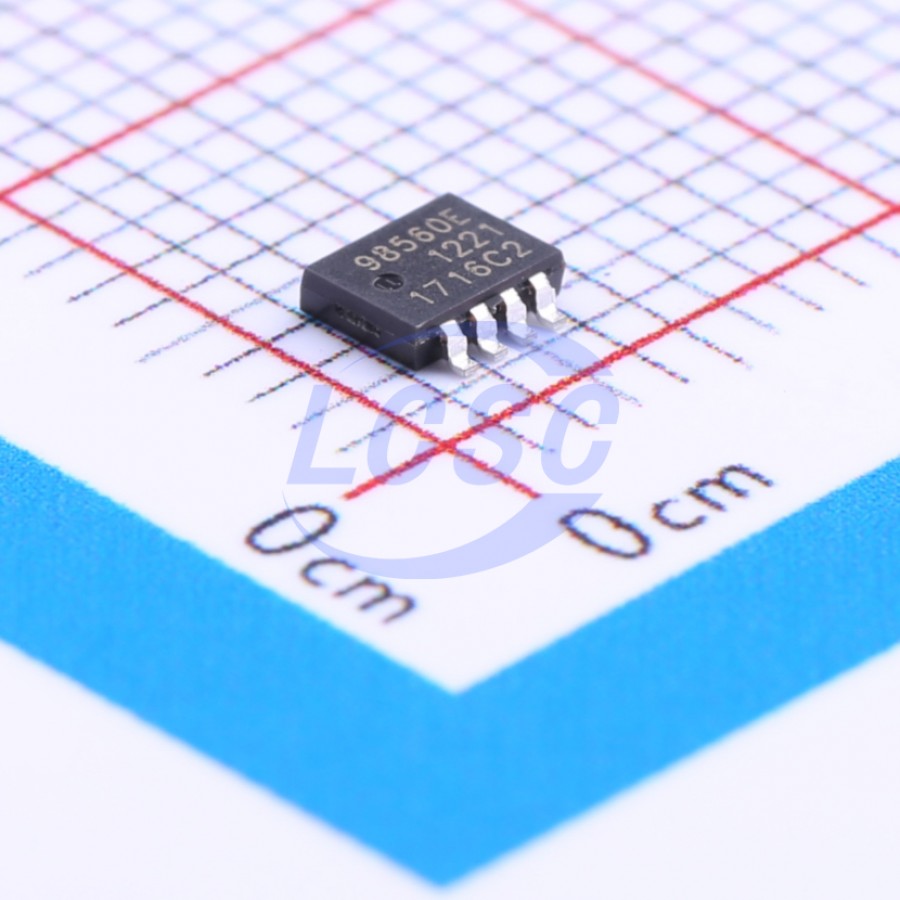

BUK9M85-60EX
N-Channel 60V 12.8A 31W LFPAK33-8
LFPAK33-8ROHS3 CompliantActive
MOSFET N-CH 60V 12.8A LFPAK33-8
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK9M85-60EX
- Store part #
- C179365
- Package / case
- LFPAK33-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,498 in stock
#C179365
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.85 | ₹90.85 |
| 10+ | ₹73.94 | ₹739.40 |
| 30+ | ₹65.49 | ₹1,964.70 |
| 100+ | ₹57.03 | ₹5,703.00 |
| 500+ | ₹51.82 | ₹25,910.00 |
| 1,500+ | ₹45.33 | ₹67,995.00 |
1 × ₹90.85
₹90.85
excl. GST
₹107.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK9M85-60EX
₹90.85 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 55pF
- Ciss-Input Capacitance
- 434pF
- Pd - Power Dissipation
- 31W
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 12.8A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 85mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2nC@5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Logic level N-channel MOSFET in an LFPAK33 (Power33) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.
Applications
- 12 V automotive systems
- Motors, lamps and solenoid control
- Transmission control
- Ultra high performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- Suitable for thermally demanding environments due to 175 °C rating True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9M53-60EX#C179364Nexperia · LFPAK33-8 | Nexperia | LFPAK33-8 | 431 | ₹74.50 · 431 in stock | View |
 | BUK9M15-60EX#C550010Nexperia · LFPAK33-8 | Nexperia | LFPAK33-8 | 18 | ₹210.83 · 18 in stock | View |
 | PSMN075-100MSEX#C478016Nexperia · LFPAK33-8 | Nexperia | LFPAK33-8 | 43 | ₹64.18 · 43 in stock | View |
 | PSMN040-100MSEX#C458214Nexperia · LFPAK33-8 | Nexperia | LFPAK33-8 | 1,110 | ₹197.64 · 1,110 in stock | View |
 | BUK9M19-60EX#C550012Nexperia · LFPAK33-8 | Nexperia | LFPAK33-8 | On request | ₹186.27 · 0 in stock | View |
