NexperiaDatasheet (PDF)

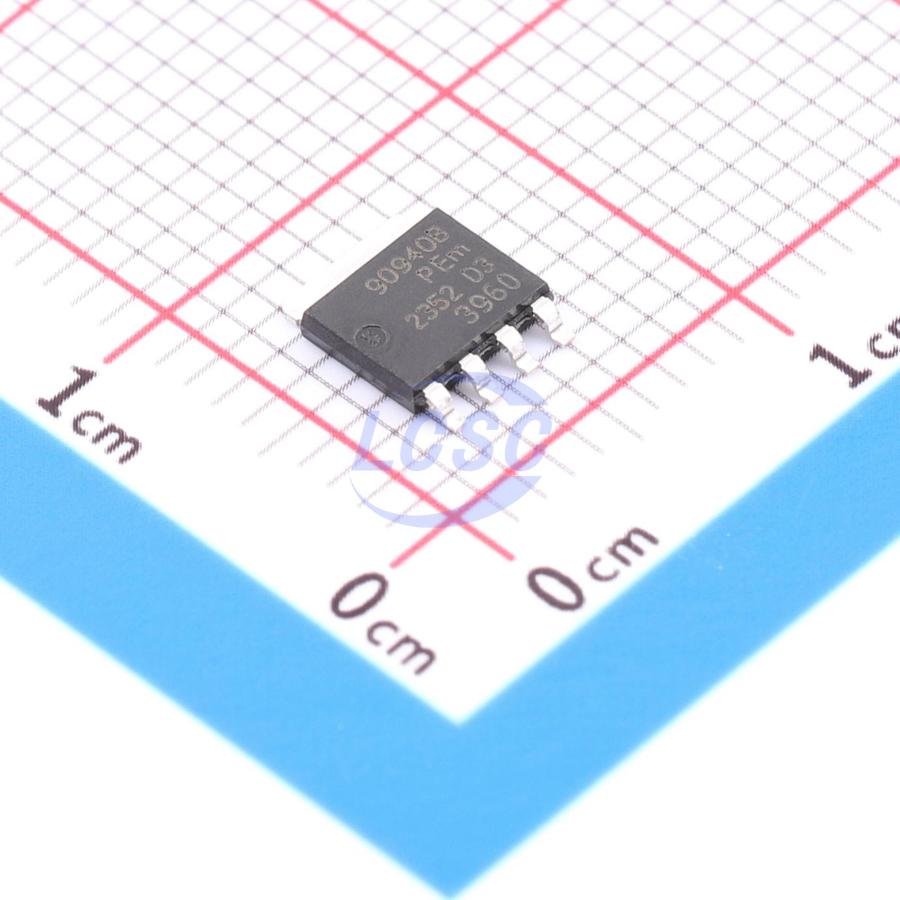

BUK9Y09-40B,115
105.3W 40V 75A 8mΩ@10V 1 N-channel N-Channel SOT-669 Single FETs, MOSFETs RoHS
SOT-669ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK9Y09-40B,115
- Store part #
- C550031
- Package / case
- SOT-669
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C550031
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.20 | ₹164.20 |
| 10+ | ₹160.07 | ₹1,600.70 |
| 30+ | ₹157.46 | ₹4,723.80 |
| 100+ | ₹154.86 | ₹15,486.00 |
1 × ₹164.20
₹164.20
excl. GST
₹193.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK9Y09-40B,115
₹164.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 378pF
- Ciss-Input Capacitance
- 2.866nF
- Pd - Power Dissipation
- 105.3W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 194pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@5V
- Vgs
- ±15V
- Gate Threshold Voltage (Vgs(th))
- 2.15V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.159 g
Overview
Logic level N-channel enhancement mode FET in a plastic package using TrenchMOS technology. This product has been designed and qualified to the relevant AEC standards for use in automotive critical applications.
Applications
- 12 V load
- General-purpose power switch
- Automotive systems
- Motors, lamps, and solenoids
Key features
- Low on-resistance, minimal conduction loss
- Compatible with logic-level gate drive sources
- Q101 compliant
- 175°C rated temperature, suitable for high thermal dissipation environments
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN8R5-60YS,115#C478210Nexperia · SOT-669 | Nexperia | SOT-669 | 6 | ₹106.70 · 6 in stock | View |
 | BUK9Y4R4-40E,115#C550047Nexperia · SOT-669 | Nexperia | SOT-669 | 39 | ₹239.08 · 39 in stock | View |
 | BUK9Y12-100E,115#C550034Nexperia · SOT-669 | Nexperia | SOT-669 | 36 | ₹250.43 · 36 in stock | View |
 | BUK7Y7R8-80E#C549929Nexperia · SOT-669 | Nexperia | SOT-669 | 18 | ₹343.91 · 18 in stock | View |
 | BUK9Y11-80EX#C550033Nexperia · SOT-669 | Nexperia | SOT-669 | 89 | ₹232.40 · 89 in stock | View |
