NexperiaDatasheet (PDF)

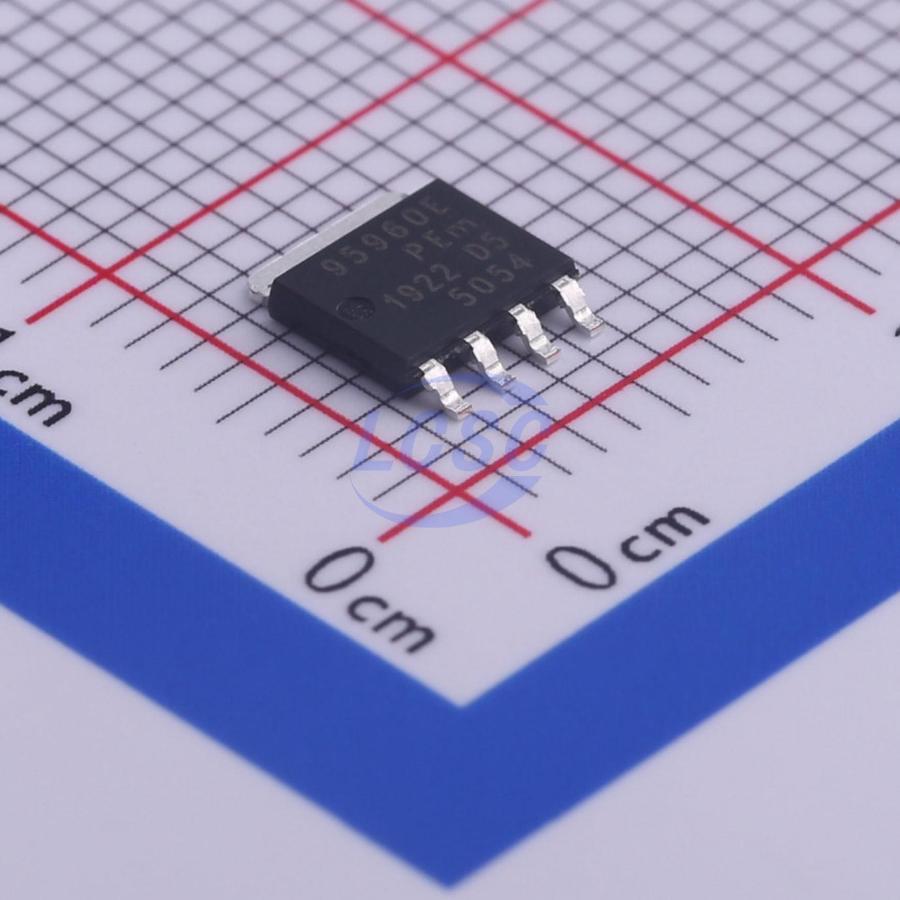

BUK9Y59-60E,115
N-Channel 60V 16.7A 37W LFPAK56(PowerSO-8)
LFPAK56(PowerSO-8)ROHS3 CompliantActive
MOSFET N-CH 60V 16.7A LFPAK56(PowerSO-8)
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK9Y59-60E,115
- Store part #
- C461193
- Package / case
- LFPAK56(PowerSO-8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,575 in stock
#C461193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.05 | ₹170.25 |
| 50+ | ₹26.61 | ₹1,330.50 |
| 150+ | ₹23.40 | ₹3,510.00 |
| 1,500+ | ₹19.42 | ₹29,130.00 |
| 3,000+ | ₹17.64 | ₹52,920.00 |
| 4,500+ | ₹16.58 | ₹74,610.00 |
5 × ₹34.05
₹170.25
excl. GST
₹200.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK9Y59-60E,115
₹170.25 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 66pF
- Ciss-Input Capacitance
- 715pF
- Pd - Power Dissipation
- 37W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 16.7A
- Reverse Transfer Capacitance (Crss)
- 56pF
- RDS(on)
- 59mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.1nC@5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.112 g
Overview
Logic level N-channel MOSFET in an LFPAK56 (Power SO8) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.
Applications
- 12 V Automotive systems
- Motors, lamps and solenoid control
- Transmission control
- Ultra high performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- Suitable for thermally demanding environments due to 175 °C rating True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9Y53-100B,115#C550048Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 2 | ₹271.12 · 2 in stock | View |
 | PSMN038-100YLX#C553208Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 2 | ₹106.09 · 2 in stock | View |
 | PSMN041-80YLX#C553210Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 3 | ₹160.29 · 3 in stock | View |
 | BUK9Y25-80E,115#C458189Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 6,092 | ₹101.69 · 6,092 in stock | View |
 | BUK9Y14-80E,115#C86732Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 187 | ₹110.93 · 187 in stock | View |
