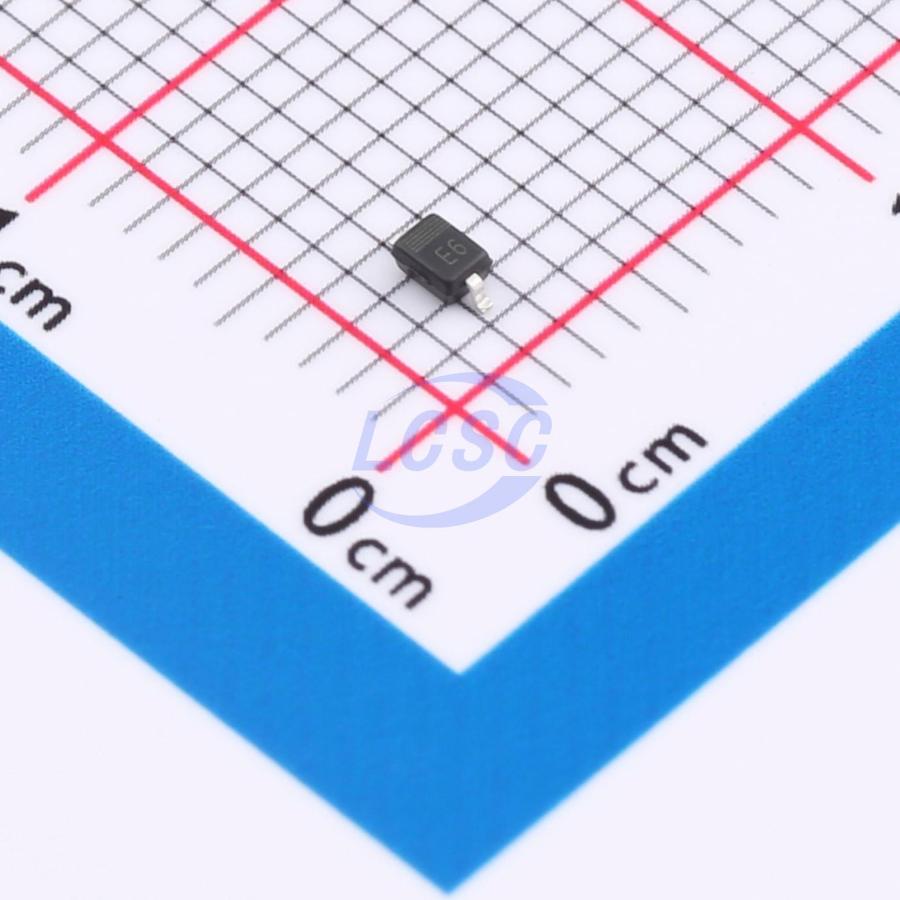

BV05C-JSM
15VC Clamp 3A@8/20us Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 15VC SOD-323
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BV05C-JSM
- Store part #
- C22447111
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C22447111
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.80 | ₹96.00 |
| 200+ | ₹3.80 | ₹760.00 |
| 600+ | ₹3.29 | ₹1,974.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
| 21,000+ | ₹2.47 | ₹51,870.00 |
20 × ₹4.80
₹96.00
excl. GST
₹113.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BV05C-JSM
₹96.00 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 45W@8/20us
- Voltage - Breakdown
- 5.4V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
The BV05C is designed to protect voltage-sensitive components requiring ultra-low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time make these devices ideal for ESD protection in space-constrained designs. Thanks to its low capacitance, it is suitable for high-frequency designs such as USB 2.0 high-speed and antenna line applications.
Applications
- USB 2.0 high-speed applications
- Antenna line applications
Key features
- Ultra-low capacitance 0.5 pF
- Low clamping voltage
- Small form factor
- Standoff voltage: 5 V
- Low leakage
- Response time typically < 1.0 ns
- IEC61000-4-2 Level 4 ESD protection
- Lead-free device
- S prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 compliant with PPAP capability
