HXY MOSFETDatasheet (PDF)

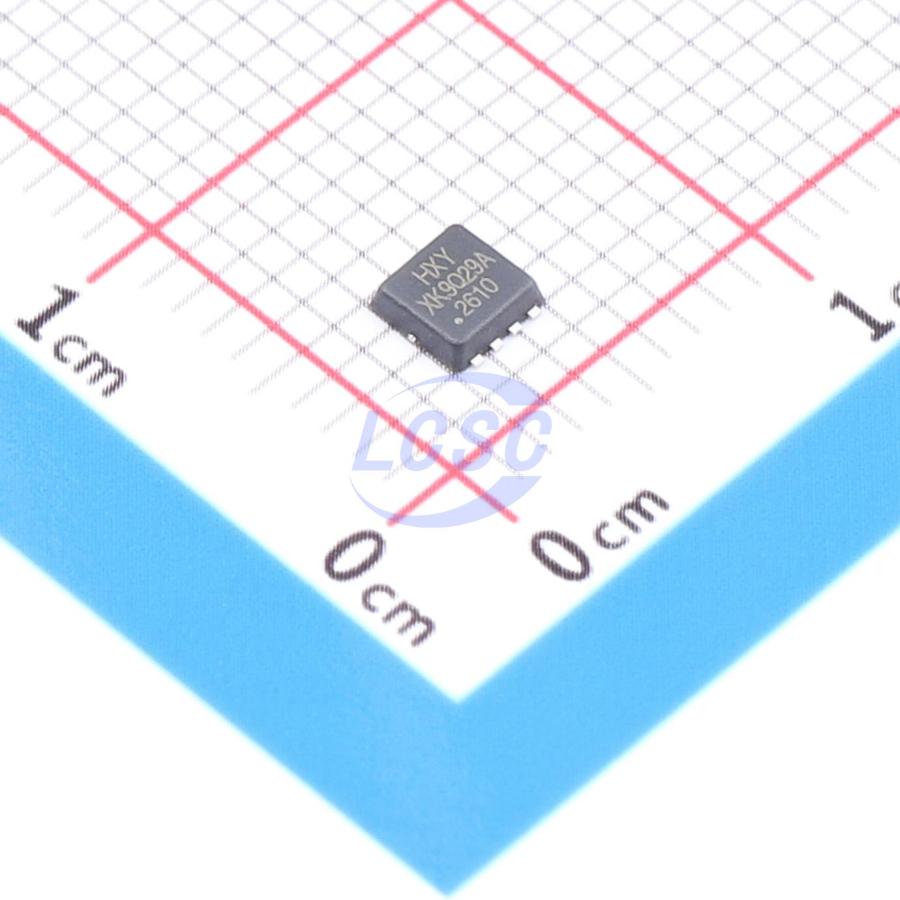

BXK9Q29-60AJ-HXY
60V 20A 33W 24mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BXK9Q29-60AJ-HXY
- Store part #
- C54582531
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582531
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.08 | ₹220.40 |
| 50+ | ₹35.31 | ₹1,765.50 |
| 150+ | ₹31.54 | ₹4,731.00 |
| 500+ | ₹26.86 | ₹13,430.00 |
| 2,500+ | ₹22.15 | ₹55,375.00 |
| 5,000+ | ₹20.90 | ₹1,04,500.00 |
5 × ₹44.08
₹220.40
excl. GST
₹260.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BXK9Q29-60AJ-HXY
₹220.40 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 64pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.06nF
- Pd - Power Dissipation
- 33W
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 24mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
BXK9Q29 - 60AJ utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage VDS = 60V, drain current ID = 20A
- On-resistance RDS(ON) < 30mΩ at gate-source voltage VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS030N06C-HXY#C22367285HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 200 | ₹76.71 · 200 in stock | View |
 | SIS4634LDN-T1-GE3-HXY#C54582428HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 34 | ₹63.85 · 34 in stock | View |
 | NVTFS030N06CTAG-HXY#C54582489HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 48 | ₹83.12 · 48 in stock | View |
 | NVTFWS030N06CTAG-HXY#C54582490HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 48 | ₹83.56 · 48 in stock | View |
 | NTTFS5C680NLTAG-HXY#C54582497HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 15 | ₹27.27 · 15 in stock | View |
