VISHAYDatasheet (PDF)

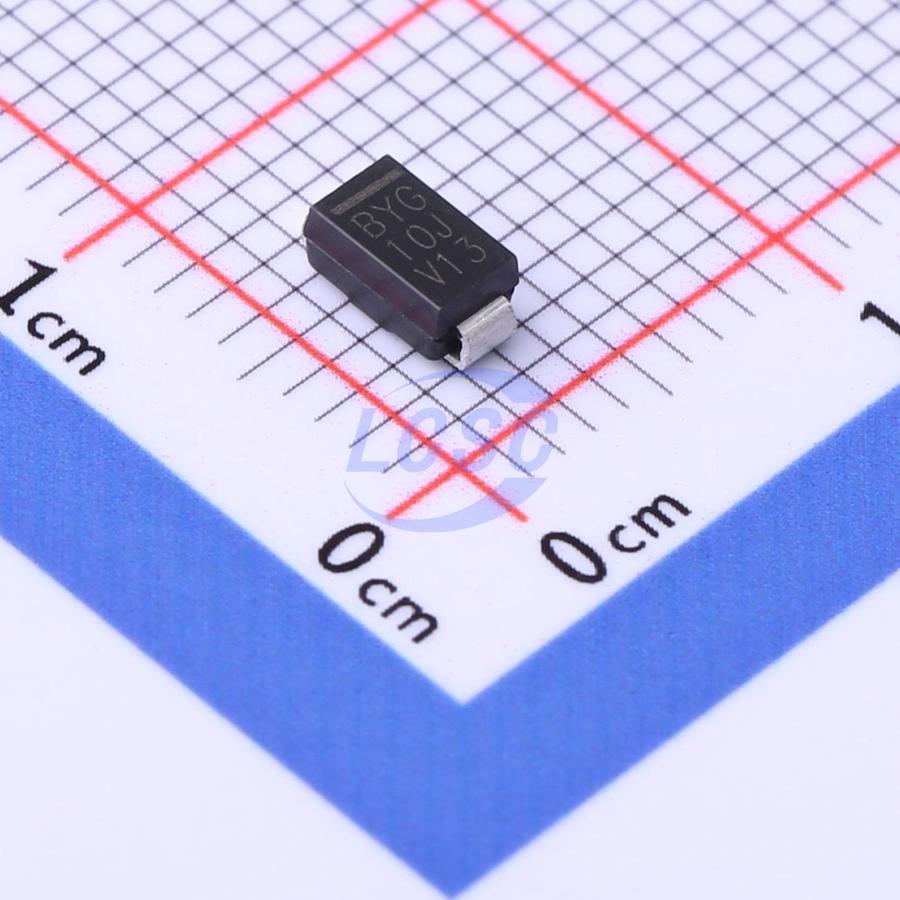

BYG10J-E3/TR
4us Standalone 600V 1.15V@1.5A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Standard Avalanche SMD Rectifier
- Manufacturer
- VISHAY
- Manufacturer part #
- BYG10J-E3/TR
- Store part #
- C2928657
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C2928657
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.16 | ₹125.80 |
| 50+ | ₹19.50 | ₹975.00 |
| 150+ | ₹17.08 | ₹2,562.00 |
| 500+ | ₹14.05 | ₹7,025.00 |
| 1,800+ | ₹12.71 | ₹22,878.00 |
| 5,400+ | ₹11.91 | ₹64,314.00 |
5 × ₹25.16
₹125.80
excl. GST
₹148.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
BYG10J-E3/TR
₹125.80 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 4us
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.15V@1.5A
- Reverse Leakage Current (Ir)
- 1uA@600V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.5A
- Avalanche Energy
- 20mJ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYG10J#C19272965LGE · SMA | LGE | SMA | 1,740 | ₹11.44 · 1,740 in stock | View |
 | BYG10M-E3/TR#C968559VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 66,515 | ₹24.78 · 66,515 in stock | View |
 | BYG20JHE3_A/H#C511425VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 15 | ₹50.90 · 15 in stock | View |
 | BYG21M-E3/TR#C36987VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 2,480 | ₹18.77 · 2,480 in stock | View |
