VISHAYDatasheet (PDF)

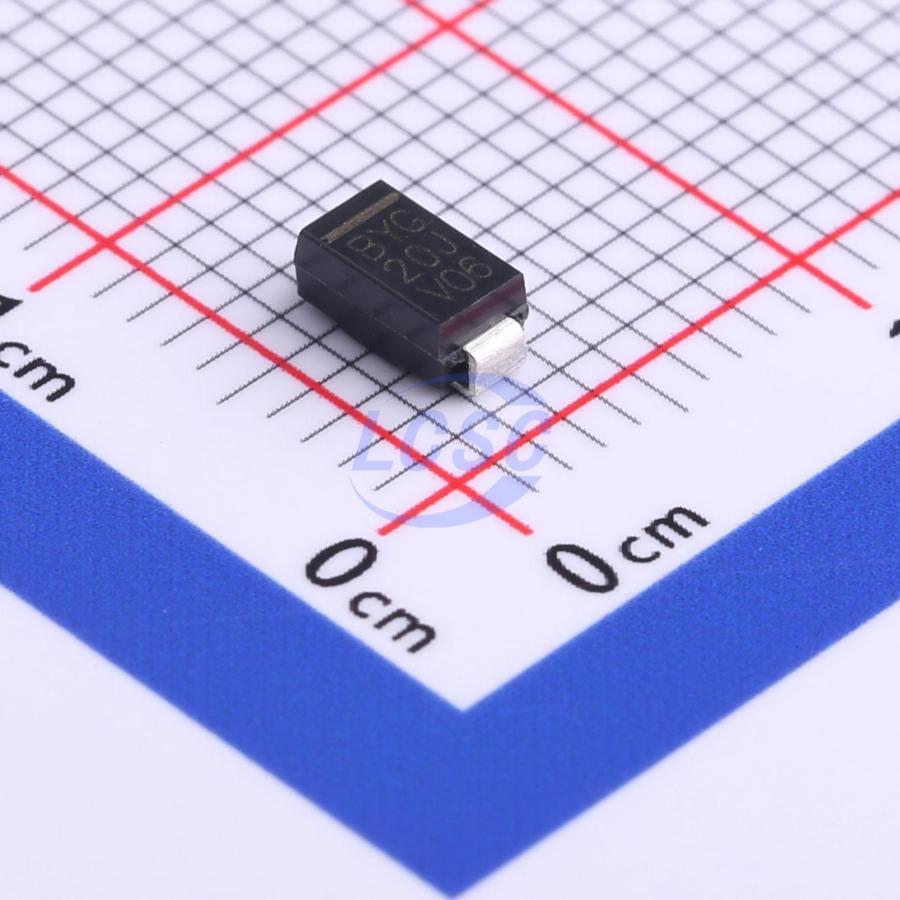

BYG20JHE3_A/H
75ns Standalone 600V 1.4V@1.5A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Ultrafast Avalanche SMD Rectifier
- Manufacturer
- VISHAY
- Manufacturer part #
- BYG20JHE3_A/H
- Store part #
- C511425
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C511425
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.90 | ₹50.90 |
| 10+ | ₹39.82 | ₹398.20 |
| 30+ | ₹35.14 | ₹1,054.20 |
| 100+ | ₹29.19 | ₹2,919.00 |
| 500+ | ₹26.62 | ₹13,310.00 |
| 1,000+ | ₹25.14 | ₹25,140.00 |
1 × ₹50.90
₹50.90
excl. GST
₹60.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
BYG20JHE3_A/H
₹50.90 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.4V@1.5A
- Reverse Leakage Current (Ir)
- 1uA@600V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.5A
- Avalanche Energy
- 20mJ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYG21M-E3/TR#C36987VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 2,480 | ₹18.77 · 2,480 in stock | View |
 | BYG10J#C19272965LGE · SMA | LGE | SMA | 1,740 | ₹11.44 · 1,740 in stock | View |
 | BYG10J-E3/TR#C2928657VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,120 | ₹25.16 · 1,120 in stock | View |
 | BYG10M-E3/TR#C968559VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 66,515 | ₹24.78 · 66,515 in stock | View |
