VISHAYDatasheet (PDF)

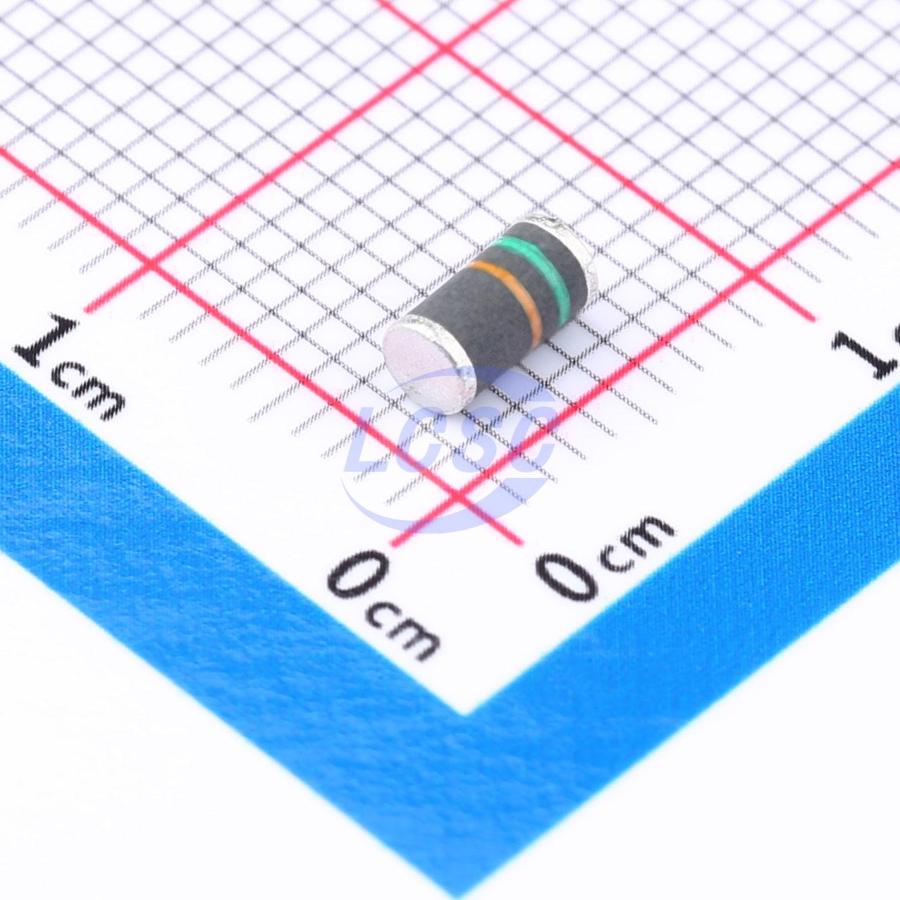

BYM12-200-E3/96
Diode 200V 1A Surface Mount DO-213AB
DO-213ABROHS3 CompliantActive
DIODE STANDARD 200V 1A DO-213AB
- Manufacturer
- VISHAY
- Manufacturer part #
- BYM12-200-E3/96
- Store part #
- C5342947
- Package / case
- DO-213AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,269 in stock
#C5342947
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.41 | ₹43.41 |
| 10+ | ₹42.76 | ₹427.60 |
| 30+ | ₹42.32 | ₹1,269.60 |
| 100+ | ₹41.89 | ₹4,189.00 |
1 × ₹43.41
₹43.41
excl. GST
₹51.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BYM12-200-E3/96
₹43.41 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1V@1A
- Reverse Leakage Current (Ir)
- 5uA@200V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
Applications
- For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Key features
- Superectifier structure for high reliability condition
- Cavity-free glass-passivated junction RoHS
- Ideal for automated placement COMPLIANT
- Ultrafast reverse recovery time
- Low switching losses, high efficiency
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EGL41G-E3/96#C142566VISHAY · DO-213AB | VISHAY | DO-213AB | 200 | ₹49.20 · 200 in stock | View |
 | EGL41D-E3/96#C145299VISHAY · DO-213AB | VISHAY | DO-213AB | 1 | ₹53.48 · 1 in stock | View |
 | DL4007#C64935MDD(Microdiode Semiconductor) · DO-213AB | MDD(Microdiode Semiconductor) | DO-213AB | 52,240 | ₹7.09 · 52,240 in stock | View |
| DL4007#C20624192YFW · DO-213AB | YFW | DO-213AB | 5,000 | ₹7.59 · 5,000 in stock | View | |
 | BYM10-400-E3/96#C2984667VISHAY · DO-213AB | VISHAY | DO-213AB | 65 | ₹36.50 · 65 in stock | View |
