VISHAYDatasheet (PDF)

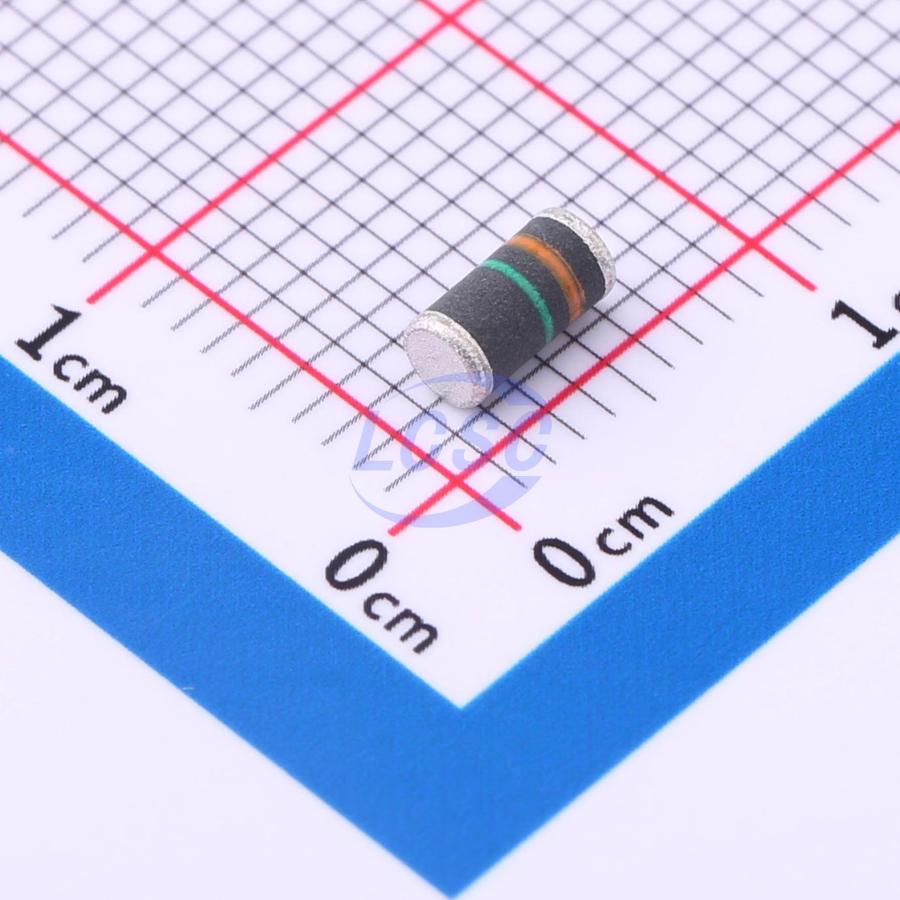

BYM13-60-E3/96
Diode 1 Independent 60V 1A Surface Mount DO-213AB
DO-213ABROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-213AB
- Manufacturer
- VISHAY
- Manufacturer part #
- BYM13-60-E3/96
- Store part #
- C145251
- Package / case
- DO-213AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,428 in stock
#C145251
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.41 | ₹70.41 |
| 10+ | ₹55.86 | ₹558.60 |
| 30+ | ₹49.77 | ₹1,493.10 |
| 100+ | ₹41.94 | ₹4,194.00 |
| 500+ | ₹38.47 | ₹19,235.00 |
| 1,500+ | ₹36.51 | ₹54,765.00 |
1 × ₹70.41
₹70.41
excl. GST
₹83.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BYM13-60-E3/96
₹70.41 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 700mV@1A
- Reverse Leakage Current (Ir)
- 500uA@60V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications
Key features
- MELF Schottky rectifier Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250℃
- AEC-Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TMBYV10-60FILM#C283271ST · DO-213AB(MELF) | ST | DO-213AB(MELF) | 50 | ₹29.38 · 50 in stock | View |
| SGL41-60-E3/97#C3759452VISHAY · GL41(DO-213AB) | VISHAY | GL41(DO-213AB) | On request | ₹49.40 · 0 in stock | View | |
 | SGL41-60-E3/96#C5224068VISHAY · DO-213AB | VISHAY | DO-213AB | On request | ₹90.49 · 0 in stock | View |
| BYM13-60-E3/97#C7223396VISHAY · DO-213AB | VISHAY | DO-213AB | On request | ₹69.58 · 0 in stock | View | |
| 1N6761UR-1#C3758754MICROCHIP · DO-213AB | MICROCHIP | DO-213AB | On request | ₹2,790.48 · 0 in stock | View | |
