STDatasheet (PDF)
TMBYV10-60FILM
Diode 60V 1A DO-213AB(MELF)
DO-213AB(MELF)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-213AB(MELF)
- Manufacturer
- ST
- Manufacturer part #
- TMBYV10-60FILM
- Store part #
- C283271
- Package / case
- DO-213AB(MELF)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C283271
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.38 | ₹146.90 |
| 50+ | ₹23.34 | ₹1,167.00 |
| 150+ | ₹20.73 | ₹3,109.50 |
| 1,500+ | ₹17.50 | ₹26,250.00 |
| 3,000+ | ₹16.06 | ₹48,180.00 |
| 4,500+ | ₹15.19 | ₹68,355.00 |
5 × ₹29.38
₹146.90
excl. GST
₹173.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TMBYV10-60FILM
₹146.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 700mV@1A
- Reverse Leakage Current (Ir)
- 500uA@60V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
Metal to silicon rectifier diode in glass case featuring very low forward voltage drop and fast recovery time, intended for low voltage switching mode power supply, polarity protection and high frequency circuits.
Applications
- Low-voltage switch-mode power supplies
- Polarity protection
- High-frequency circuits
Key features
- Pulse test conditions: tp≤300μs, δ<2
- Forward current conducted by majority carriers; reverse recovery unaffected by stored charge
- Switching from forward bias to reverse blocking state requires charging the depletion capacitance; current depends on diode capacitance and external circuit impedance
- Can be modeled as an ideal diode in parallel with a variable capacitance equal to the junction capacitance

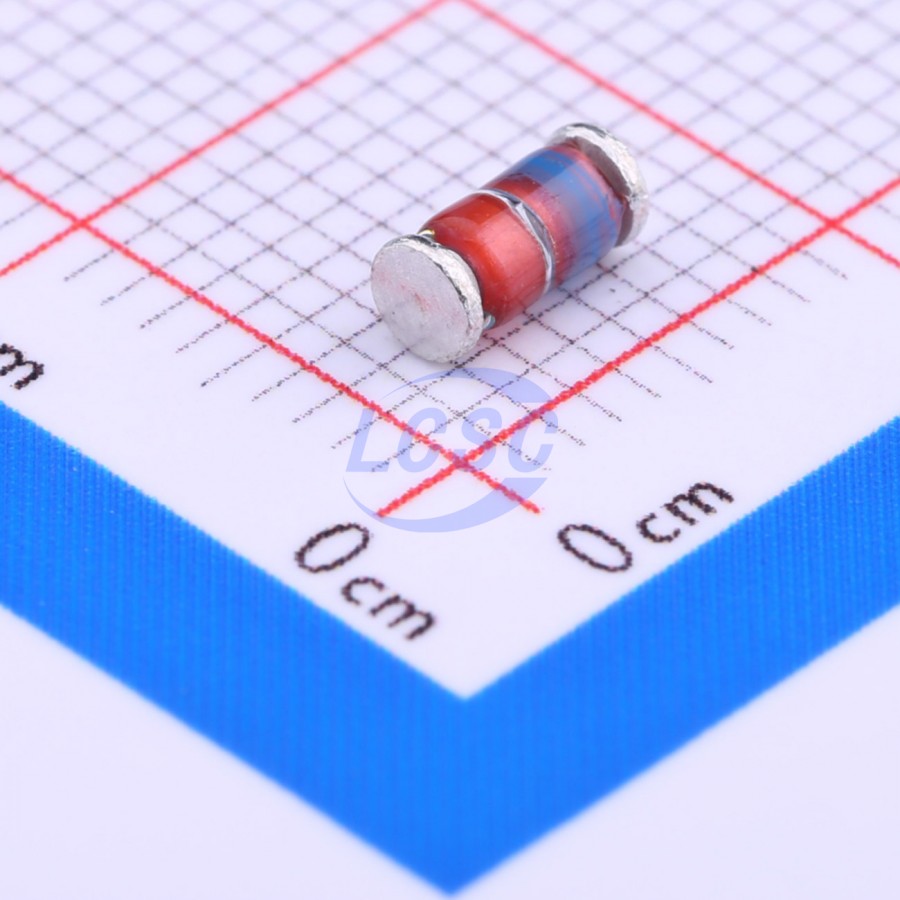

- MELF glass package, cathode end marked with band, weight 0.15g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYM13-60-E3/96#C145251VISHAY · DO-213AB | VISHAY | DO-213AB | 1,428 | ₹70.41 · 1,428 in stock | View |
 | SGL41-60-E3/96#C5224068VISHAY · DO-213AB | VISHAY | DO-213AB | On request | ₹90.49 · 0 in stock | View |
| BYM13-60-E3/97#C7223396VISHAY · DO-213AB | VISHAY | DO-213AB | On request | ₹69.58 · 0 in stock | View | |
| SGL41-60-E3/97#C3759452VISHAY · GL41(DO-213AB) | VISHAY | GL41(DO-213AB) | On request | ₹49.40 · 0 in stock | View | |
| 1N6864US#C3758333MICROCHIP · MELF | MICROCHIP | MELF | On request | ₹22,685.19 · 0 in stock | View | |
