VISHAYDatasheet (PDF)

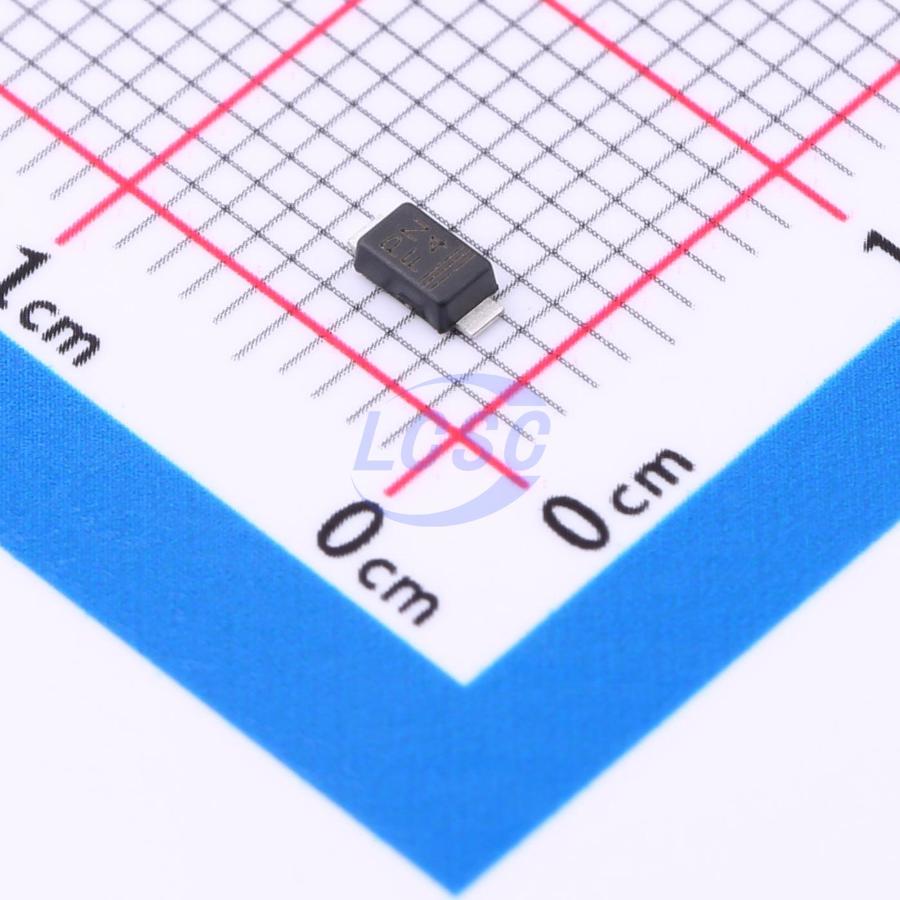

BZD27C36P-E3-08
Zener Diode Independent 36V 2300mW Surface Mount SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
DIODE ZENER 36V 2300mW SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C36P-E3-08
- Store part #
- C3764767
- Package / case
- SMF(DO-219AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C3764767
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.76 | ₹108.80 |
| 50+ | ₹16.99 | ₹849.50 |
| 150+ | ₹14.95 | ₹2,242.50 |
| 500+ | ₹12.40 | ₹6,200.00 |
| 3,000+ | ₹11.26 | ₹33,780.00 |
| 6,000+ | ₹10.58 | ₹63,480.00 |
5 × ₹21.76
₹108.80
excl. GST
₹128.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C36P-E3-08
₹108.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 2.3W
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 21Ω
- Zener Voltage(Range)
- 34V~38V
- Zener Voltage(Nom)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C39P-E3-08#C3739317VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 1,620 | ₹31.32 · 1,620 in stock | View |
| BZD27C36P-M3-08#C5583604VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD27C36P-HE3-18#C6474934VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹40.76 · 0 in stock | View | |
| BZD27C36P-E3-18#C6522380VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
| BZD27C36P-M3-18#C17314055VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹24.75 · 0 in stock | View | |
