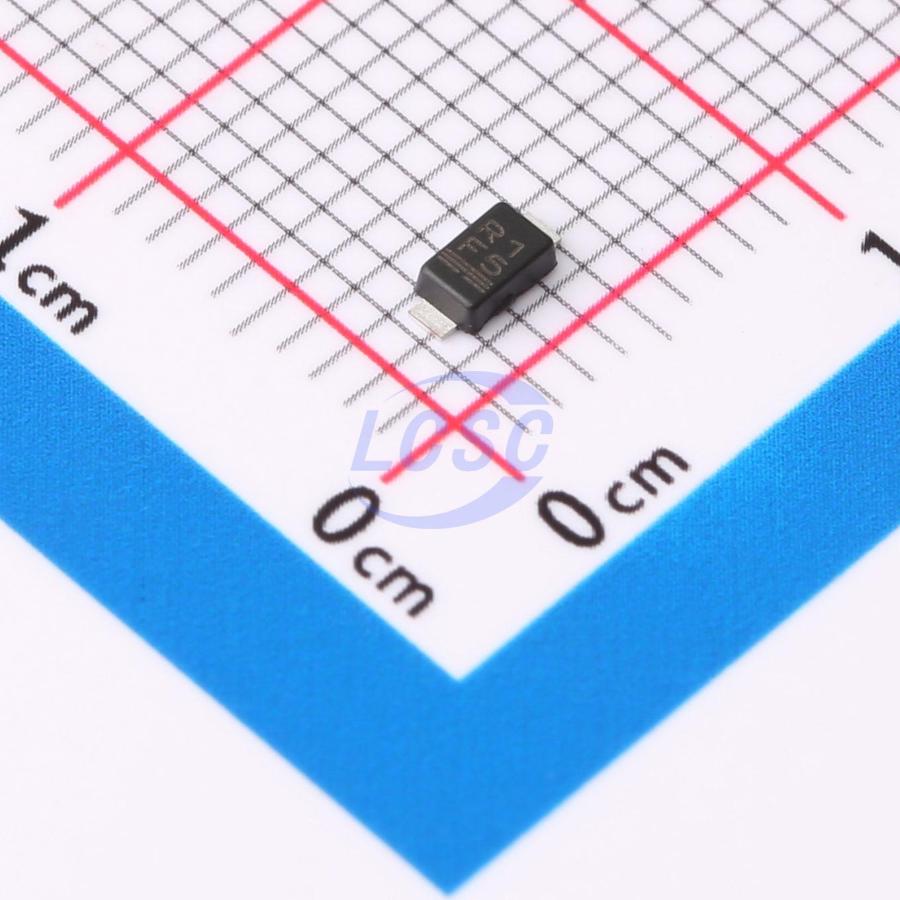

BZD27C39P-E3-08
Zener Diode Independent 39V 800mW Surface Mount SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
DIODE ZENER 39V 800mW SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C39P-E3-08
- Store part #
- C3739317
- Package / case
- SMF(DO-219AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C3739317
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.32 | ₹156.60 |
| 50+ | ₹25.47 | ₹1,273.50 |
| 150+ | ₹22.95 | ₹3,442.50 |
| 500+ | ₹19.83 | ₹9,915.00 |
| 3,000+ | ₹18.43 | ₹55,290.00 |
| 6,000+ | ₹17.60 | ₹1,05,600.00 |
5 × ₹31.32
₹156.60
excl. GST
₹184.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C39P-E3-08
₹156.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 5uA@30V
- Impedance(Zzt)
- 21Ω
- Zener Voltage(Range)
- 37V~41V
- Zener Voltage(Nom)
- 39V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C36P-E3-08#C3764767VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 2,140 | ₹21.76 · 2,140 in stock | View |
| BZD27C39P-M3-08#C5583623VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD27C39P-M3-18#C5957176VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD27C39P-E3-18#C7093021VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
| BZD17C39P-E3-18#C7092858VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
