VISHAYDatasheet (PDF)

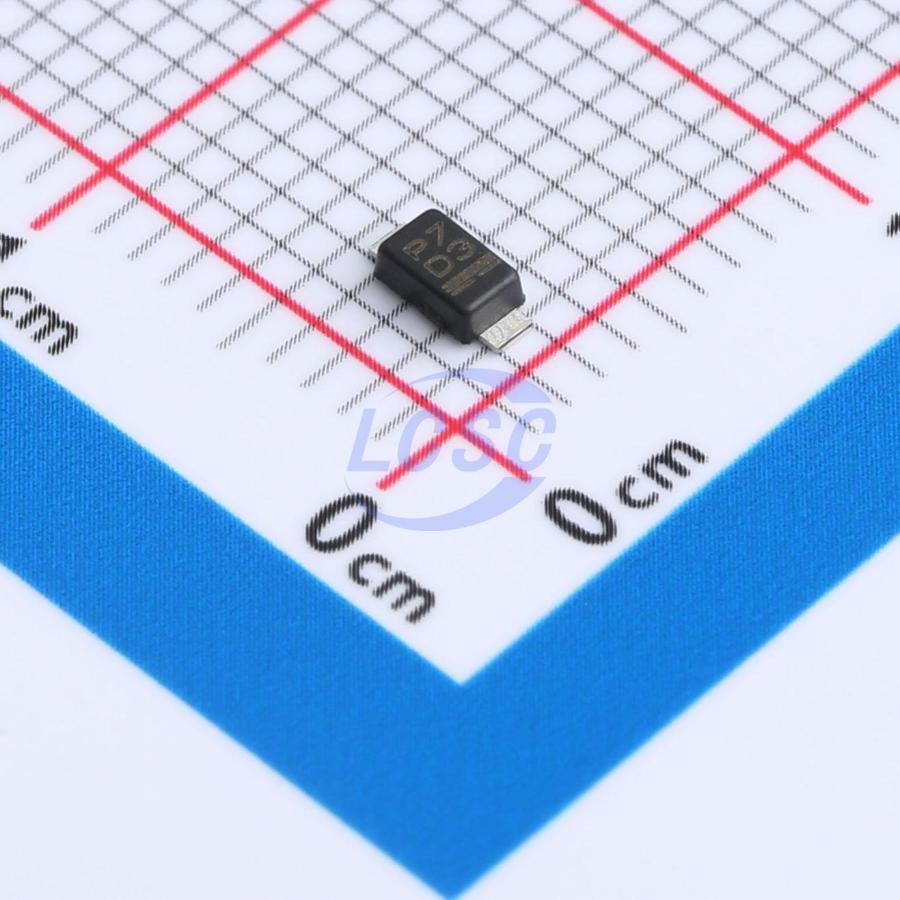

BZD27C4V7P-E3-08
Zener Diode Independent 4.7V 800mW Surface Mount SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
DIODE ZENER 4.7V 800mW SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C4V7P-E3-08
- Store part #
- C3738663
- Package / case
- SMF(DO-219AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,125 in stock
#C3738663
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.00 | ₹80.00 |
| 50+ | ₹13.87 | ₹693.50 |
| 150+ | ₹12.95 | ₹1,942.50 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 3,000+ | ₹11.30 | ₹33,900.00 |
| 6,000+ | ₹10.99 | ₹65,940.00 |
5 × ₹16.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C4V7P-E3-08
₹80.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 3Ω
- Zener Voltage(Range)
- 4.4V~5V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C5V1P-E3-08#C3765587VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 12 | ₹51.66 · 12 in stock | View |
 | BZD27C4V3P-E3-08#C3738778VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 4,745 | ₹18.07 · 4,745 in stock | View |
| BZD27C4V7P-HE3-18#C3738720VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹22.80 · 0 in stock | View | |
| BZD27C4V7P-M3-08#C3736655VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹24.09 · 0 in stock | View | |
| BZD27C4V7P-E3-18#C6136143VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
