VISHAYDatasheet (PDF)

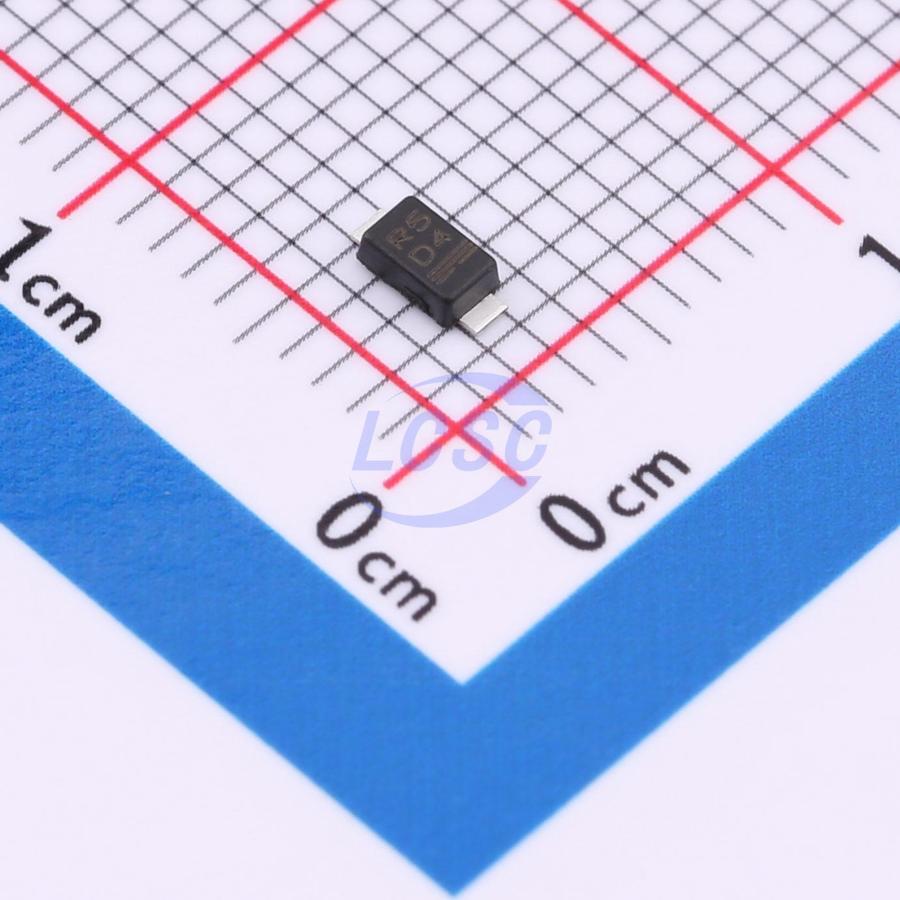

BZD27C5V1P-E3-08
Zener Diode Independent 5.1V 800mW Surface Mount SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
DIODE ZENER 5.1V 800mW SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C5V1P-E3-08
- Store part #
- C3765587
- Package / case
- SMF(DO-219AB)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C3765587
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.66 | ₹51.66 |
| 10+ | ₹40.38 | ₹403.80 |
| 30+ | ₹35.60 | ₹1,068.00 |
| 100+ | ₹29.74 | ₹2,974.00 |
| 500+ | ₹27.13 | ₹13,565.00 |
| 1,000+ | ₹25.61 | ₹25,610.00 |
1 × ₹51.66
₹51.66
excl. GST
₹60.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C5V1P-E3-08
₹51.66 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 3Ω
- Zener Voltage(Range)
- 4.8V~5.4V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C4V7P-E3-08#C3738663VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 1,125 | ₹16.00 · 1,125 in stock | View |
| BZD27C5V1P-M3-18#C5604846VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD17C5V1P-E3-08#C5583209VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
| BZD27C5V1P-E3-18#C5583658VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
| BZD17C5V1P-E3-18#C5957103VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
