VISHAYDatasheet (PDF)

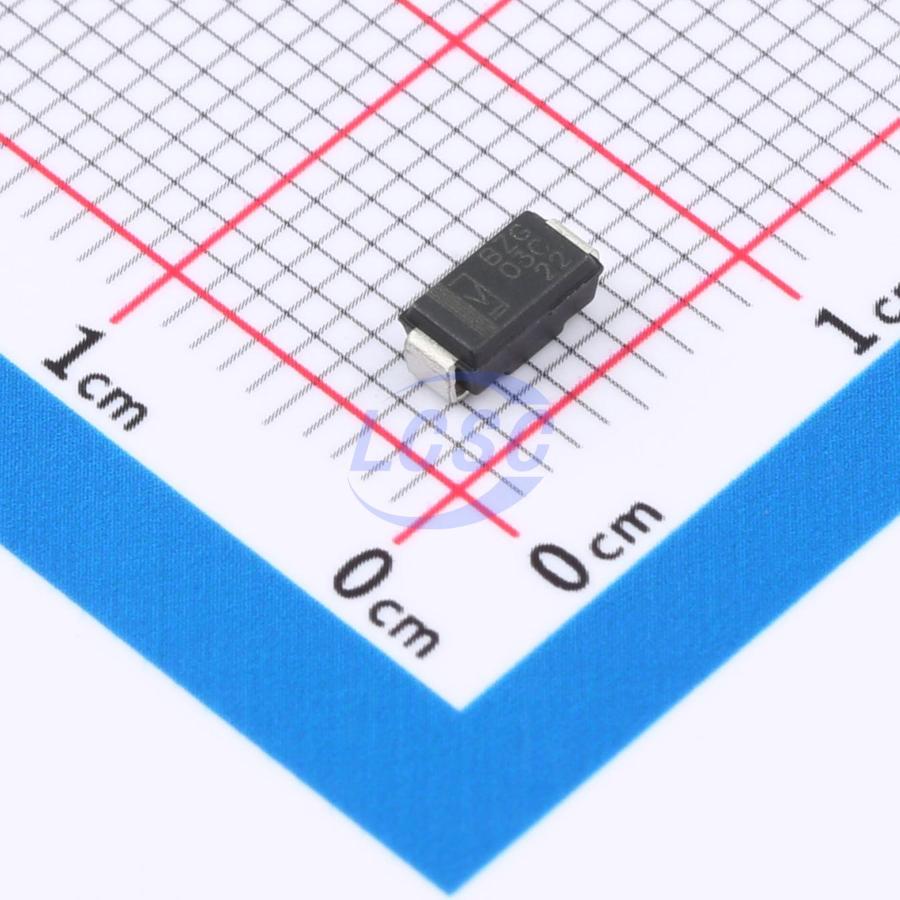

BZG03C22-M3-08
Zener Diode Independent 22V 3W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 22V 3W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C22-M3-08
- Store part #
- C3741859
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
74 in stock
#C3741859
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.08 | ₹234.08 |
| 10+ | ₹229.78 | ₹2,297.80 |
| 30+ | ₹226.99 | ₹6,809.70 |
| 100+ | ₹223.97 | ₹22,397.00 |
1 × ₹234.08
₹234.08
excl. GST
₹276.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C22-M3-08
₹234.08 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMA3Z22A#C5161119ZHIDE · SMA | ZHIDE | SMA | 4,920 | ₹13.94 · 4,920 in stock | View |
 | TP1SMA5933BT3G#C49274870TECH PUBLIC · SMA | TECH PUBLIC | SMA | 3,980 | ₹9.42 · 3,980 in stock | View |
 | SMAZ22-TP#C49274896TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,670 | ₹8.96 · 2,670 in stock | View |
 | 1SMA5933A#C5158992LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 4,790 | ₹12.78 · 4,790 in stock | View |
 | 1SMA5933B#C5174496LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 2,100 | ₹14.04 · 2,100 in stock | View |
