VISHAYDatasheet (PDF)

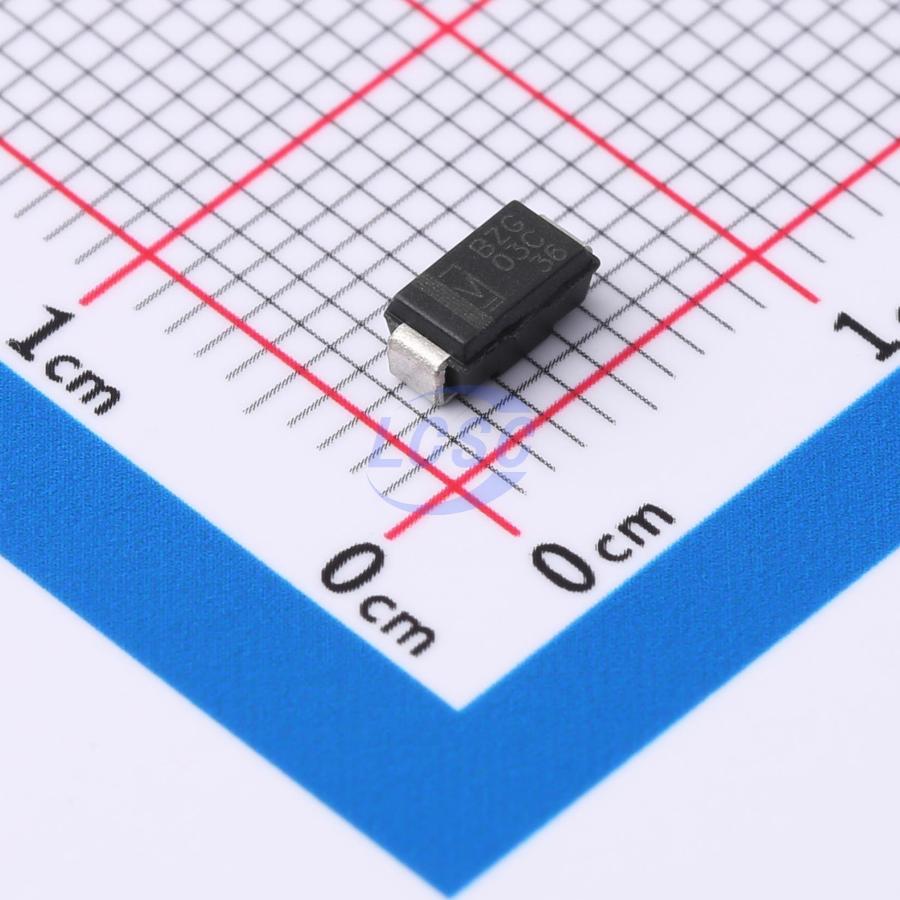

BZG03C36-M3-08
Zener Diode Independent 36V 3W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 36V 3W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C36-M3-08
- Store part #
- C5241891
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C5241891
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.52 | ₹92.52 |
| 10+ | ₹74.92 | ₹749.20 |
| 30+ | ₹66.24 | ₹1,987.20 |
| 100+ | ₹57.55 | ₹5,755.00 |
| 500+ | ₹52.34 | ₹26,170.00 |
| 1,500+ | ₹47.13 | ₹70,695.00 |
1 × ₹92.52
₹92.52
excl. GST
₹109.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C36-M3-08
₹92.52 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@27V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 34V~38V
- Zener Voltage(Nom)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP1SMA5938BT3G#C49274799TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,860 | ₹9.42 · 2,860 in stock | View |
 | SMAZ36-TP#C49274875TECH PUBLIC · SMA | TECH PUBLIC | SMA | 5,000 | ₹7.95 · 5,000 in stock | View |
 | BZG05C36#C3014339EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 3,096 | ₹17.11 · 3,096 in stock | View |
 | BZG05C36-HM3-08#C6522514VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 1,000 | ₹82.40 · 1,000 in stock | View |
 | SMAZ36-13-F#C150508DIODES · SMA | DIODES | SMA | 4,675 | ₹29.85 · 4,675 in stock | View |
