NexperiaDatasheet (PDF)

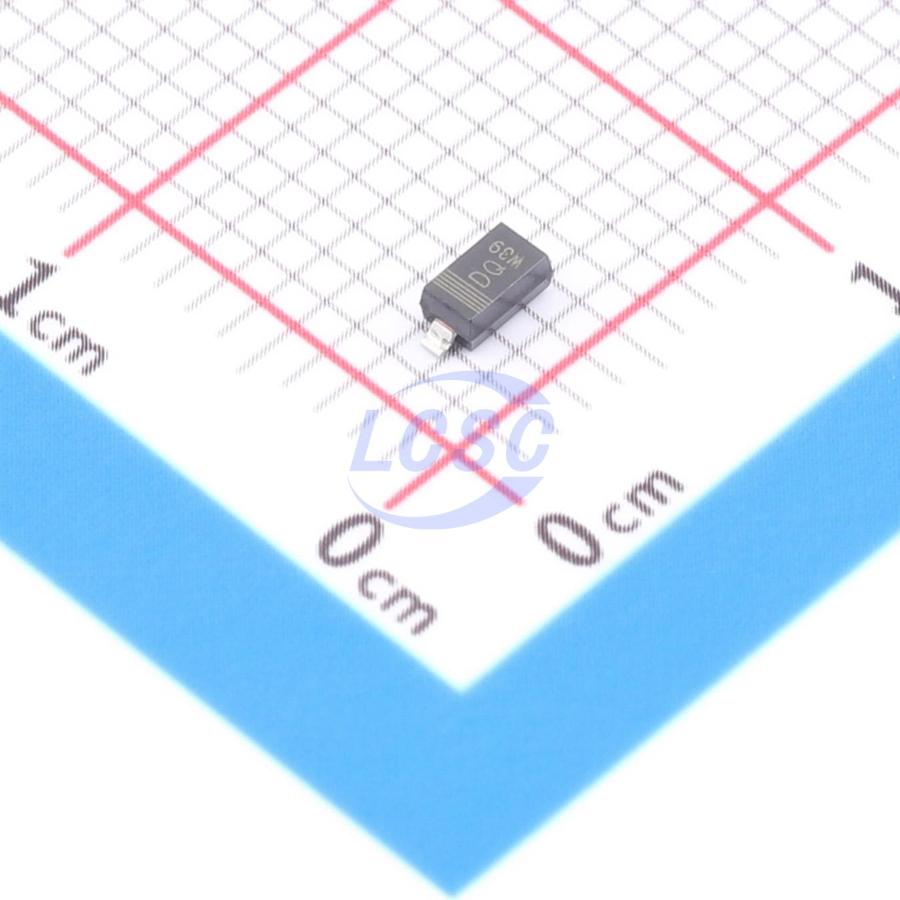

BZT52-B12-QX
1 Independent 11.8V~12.2V 12V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B12-QX
- Store part #
- C20235082
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C20235082
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.03 | ₹85.15 |
| 50+ | ₹16.62 | ₹831.00 |
| 150+ | ₹16.34 | ₹2,451.00 |
| 500+ | ₹16.06 | ₹8,030.00 |
5 × ₹17.03
₹85.15
excl. GST
₹100.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-B12-QX
₹85.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Zener Voltage(Range)
- 11.8V~12.2V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
General-purpose Zener diode in SOD123 small outline flat lead SMD plastic package.
Applications
- General Regulation Function
Key features
- Total power dissipation: ≤ 590 mW
- Two tolerance series: ±2% and approximately ±5%
- Wide operating voltage range: 2.4 V to 75 V nominal (E24 range)
- Small plastic package for SMT design
- Low differential resistance
- AEC-Q101 compliant, recommended for automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B12#C2910072JSCJ · SOD-123 | JSCJ | SOD-123 | 2,950 | ₹2.55 · 2,950 in stock | View |
 | BZT52B12#C3019939Slkor · SOD-123 | Slkor | SOD-123 | 1,200 | ₹2.78 · 1,200 in stock | View |
| MM1Z12BW#C50326946YFW · SOD-123 | YFW | SOD-123 | 6,000 | ₹2.95 · 6,000 in stock | View | |
 | BZT52B12#C5356491Shikues · SOD-123 | Shikues | SOD-123 | 150 | ₹2.16 · 150 in stock | View |
 | BZT52B12-E3-08#C917501VISHAY · SOD-123 | VISHAY | SOD-123 | 1,990 | ₹14.50 · 1,990 in stock | View |
