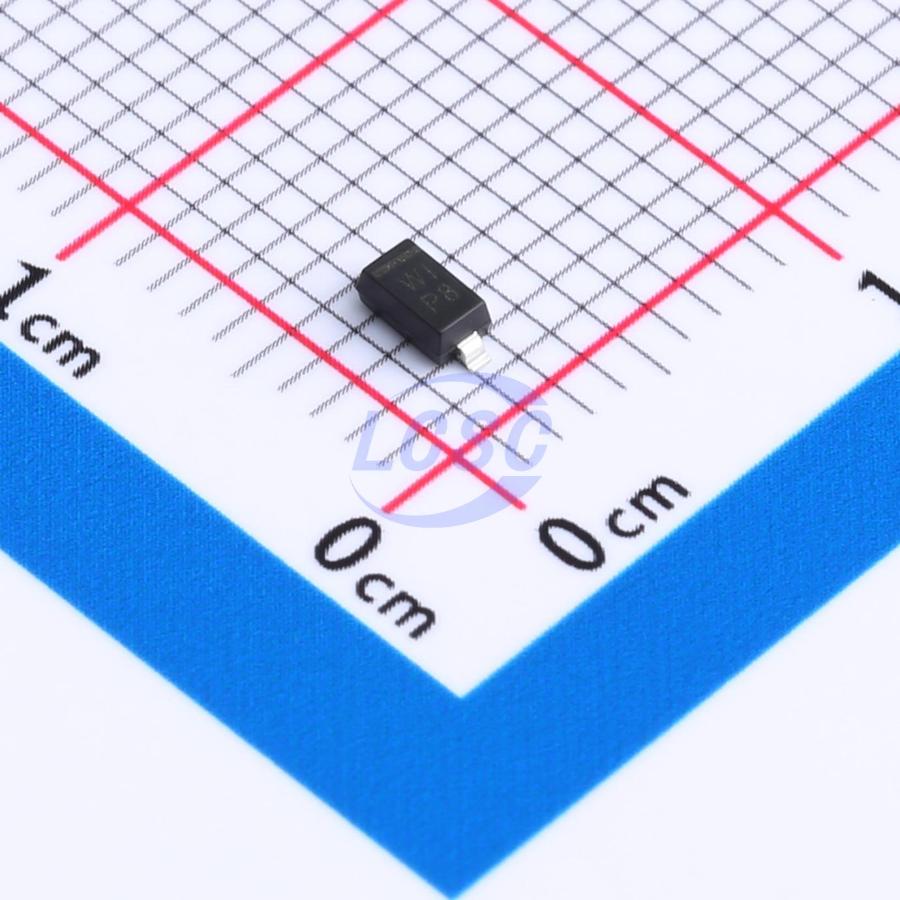

BZT52B12-E3-08
Zener Diode Independent 12V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 12V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52B12-E3-08
- Store part #
- C917501
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C917501
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.50 | ₹72.50 |
| 50+ | ₹14.26 | ₹713.00 |
| 150+ | ₹14.10 | ₹2,115.00 |
| 500+ | ₹13.94 | ₹6,970.00 |
5 × ₹14.50
₹72.50
excl. GST
₹85.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52B12-E3-08
₹72.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@9V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 11.76V~12.24V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 90Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MM1Z12BW#C50326946YFW · SOD-123 | YFW | SOD-123 | 6,000 | ₹2.95 · 6,000 in stock | View | |
 | BZT52B12#C5356491Shikues · SOD-123 | Shikues | SOD-123 | 150 | ₹2.16 · 150 in stock | View |
 | BZT52-B12-QX#C20235082Nexperia · SOD-123 | Nexperia | SOD-123 | 180 | ₹17.03 · 180 in stock | View |
 | TPZ12VC-123#C46472899TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 3,450 | ₹2.67 · 3,450 in stock | View |
 | BZT52B12 RHG#C485480Taiwan Semiconductor · SOD-123F | Taiwan Semiconductor | SOD-123F | 20 | ₹4.67 · 20 in stock | View |
