NexperiaDatasheet (PDF)

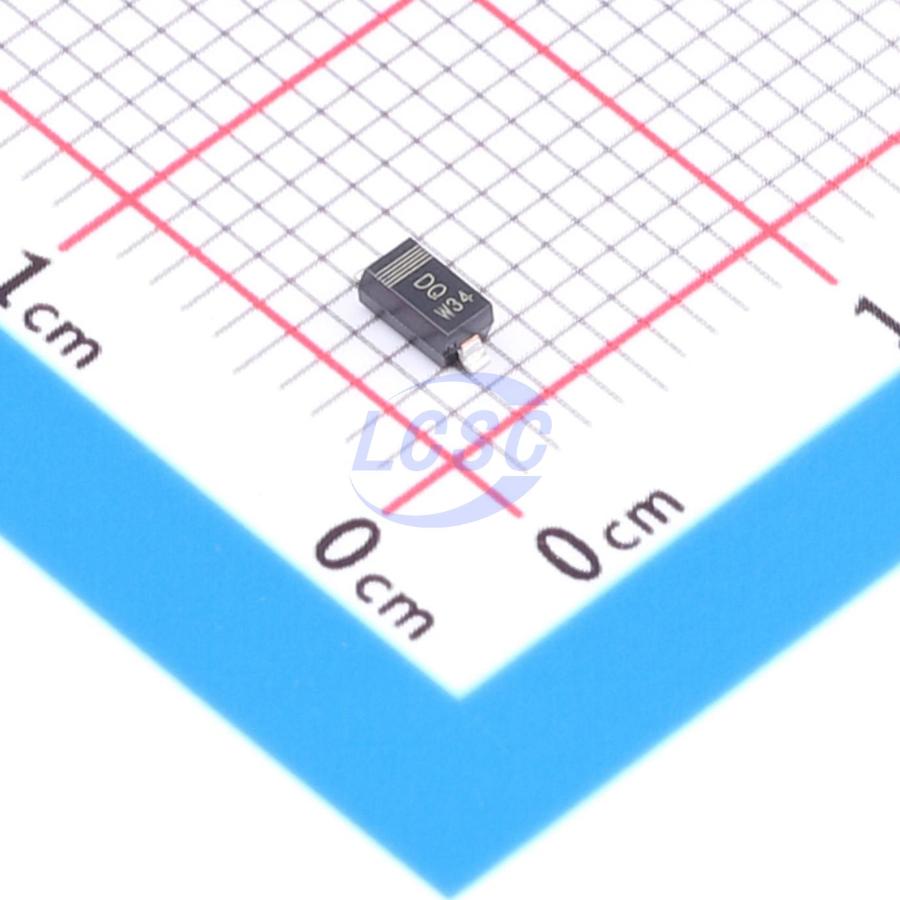

BZT52-B12J
Zener Diode 1 Independent 12V 590mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 12V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B12J
- Store part #
- C550176
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
775 in stock
#C550176
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.38 | ₹61.90 |
| 50+ | ₹12.08 | ₹604.00 |
| 150+ | ₹11.88 | ₹1,782.00 |
| 500+ | ₹11.68 | ₹5,840.00 |
5 × ₹12.38
₹61.90
excl. GST
₹73.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B12J
₹61.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 11.8V~12.2V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
