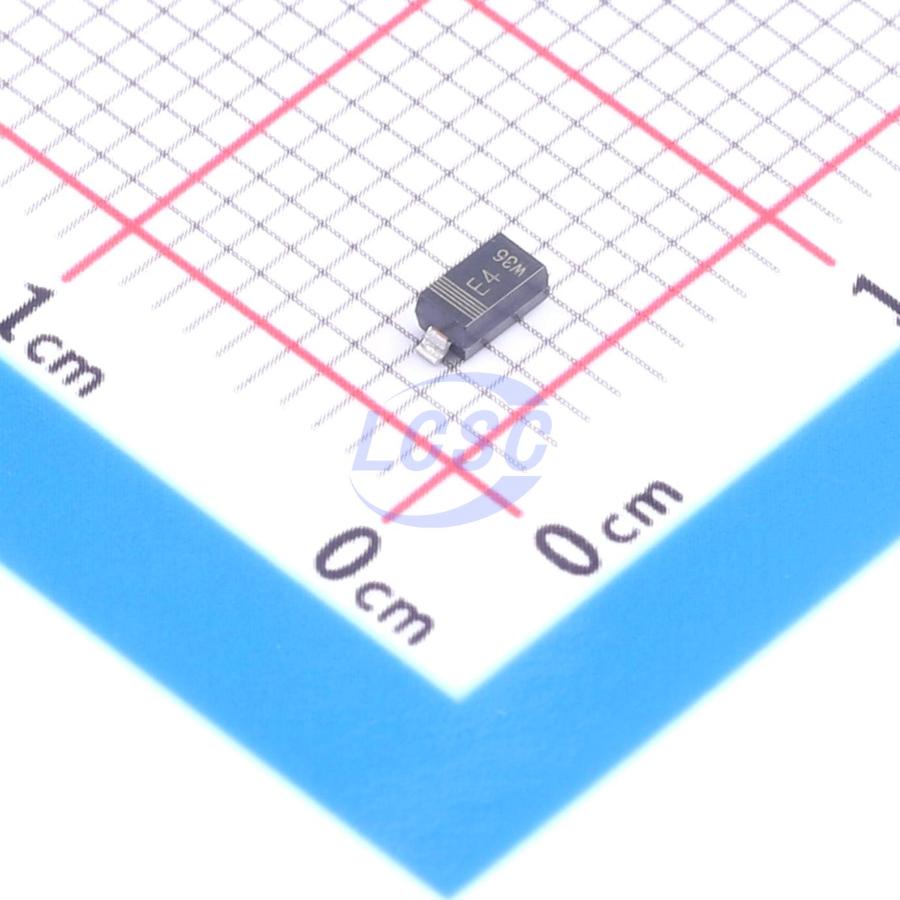

BZT52-B36J
1 Independent 35.3V~36.7V 36V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B36J
- Store part #
- C550202
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C550202
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.14 | ₹165.70 |
| 50+ | ₹26.12 | ₹1,306.00 |
| 150+ | ₹23.11 | ₹3,466.50 |
| 500+ | ₹19.36 | ₹9,680.00 |
| 2,500+ | ₹17.68 | ₹44,200.00 |
| 5,000+ | ₹16.68 | ₹83,400.00 |
5 × ₹33.14
₹165.70
excl. GST
₹195.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B36J
₹165.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 50nA@25.2V
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 35.3V~36.7V
- Zener Voltage(Nom)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52-B36X#C550203Nexperia · SOD-123 | Nexperia | SOD-123 | 6,000 | ₹25.00 · 6,000 in stock | View | |
 | MMSZ5258CT1G#C891737onsemi · SOD-123 | onsemi | SOD-123 | 225 | ₹31.90 · 225 in stock | View |
 | MM1Z36BW#C2856912JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 600 | ₹2.32 · 600 in stock | View |
 | MM1Z36B#C438319Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 1,050 | ₹2.28 · 1,050 in stock | View |
 | MM1Z36BW#C4749073Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 250 | ₹2.46 · 250 in stock | View |
