NexperiaDatasheet (PDF)

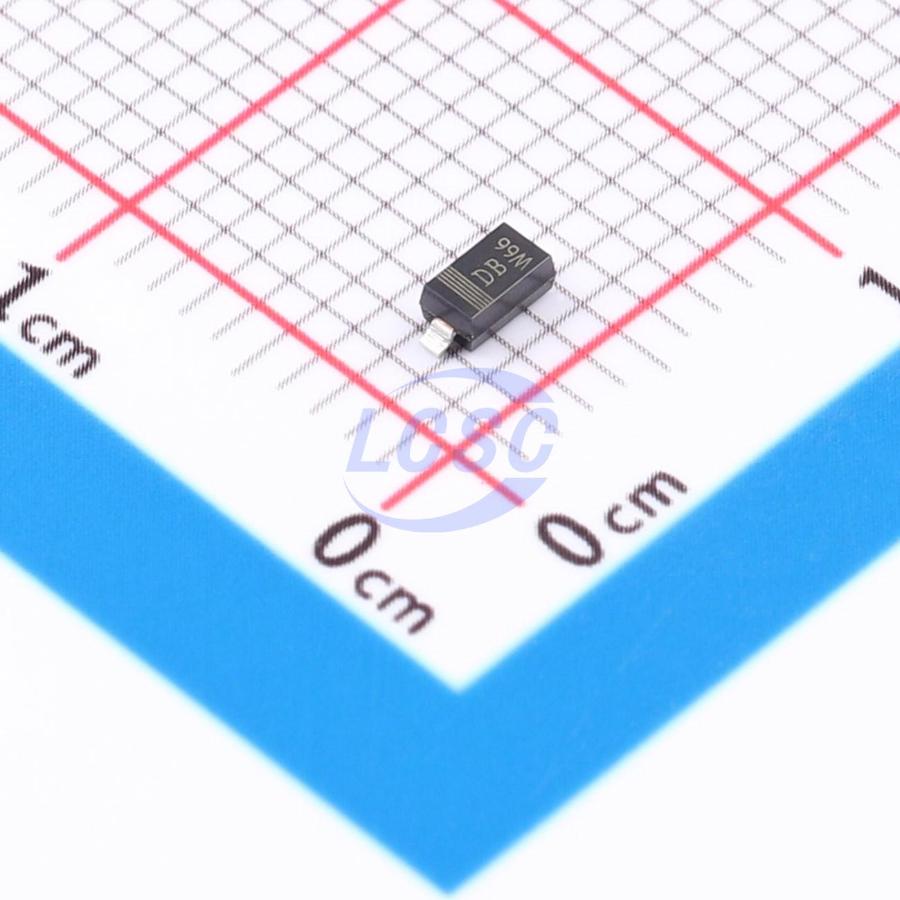

BZT52-B3V6-QX
1 Independent 3.53V~3.67V 3.6V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B3V6-QX
- Store part #
- C20235099
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C20235099
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.33 | ₹53.30 |
| 100+ | ₹4.19 | ₹419.00 |
| 300+ | ₹3.63 | ₹1,089.00 |
| 3,000+ | ₹3.19 | ₹9,570.00 |
| 6,000+ | ₹2.84 | ₹17,040.00 |
| 9,000+ | ₹2.67 | ₹24,030.00 |
10 × ₹5.33
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-B3V6-QX
₹53.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Zener Voltage(Range)
- 3.53V~3.67V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
General-purpose Zener diode in SOD123 small outline flat lead SMD plastic package.
Applications
- General Regulation Function
Key features
- Total power dissipation: ≤ 590 mW
- Two tolerance series: ±2% and approximately ±5%
- Wide operating voltage range: 2.4 V to 75 V nominal (E24 range)
- Small plastic package for SMT design
- Low differential resistance
- AEC-Q101 compliant, recommended for automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B3V6#C3647088MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 1,240 | ₹2.95 · 1,240 in stock | View |
 | BZT52B3V6#C51315184CBI · SOD-123 | CBI | SOD-123 | 2,550 | ₹1.93 · 2,550 in stock | View |
 | BZT52B3V6#C7528953amsem · SOD-123 | amsem | SOD-123 | 3,200 | ₹2.39 · 3,200 in stock | View |
 | BZT52C3V6#C19077397R+O · SOD-123 | R+O | SOD-123 | 56,350 | ₹2.71 · 56,350 in stock | View |
 | MM1Z3V6BW#C2856888JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 1,400 | ₹2.32 · 1,400 in stock | View |
