JSMSEMIDatasheet (PDF)

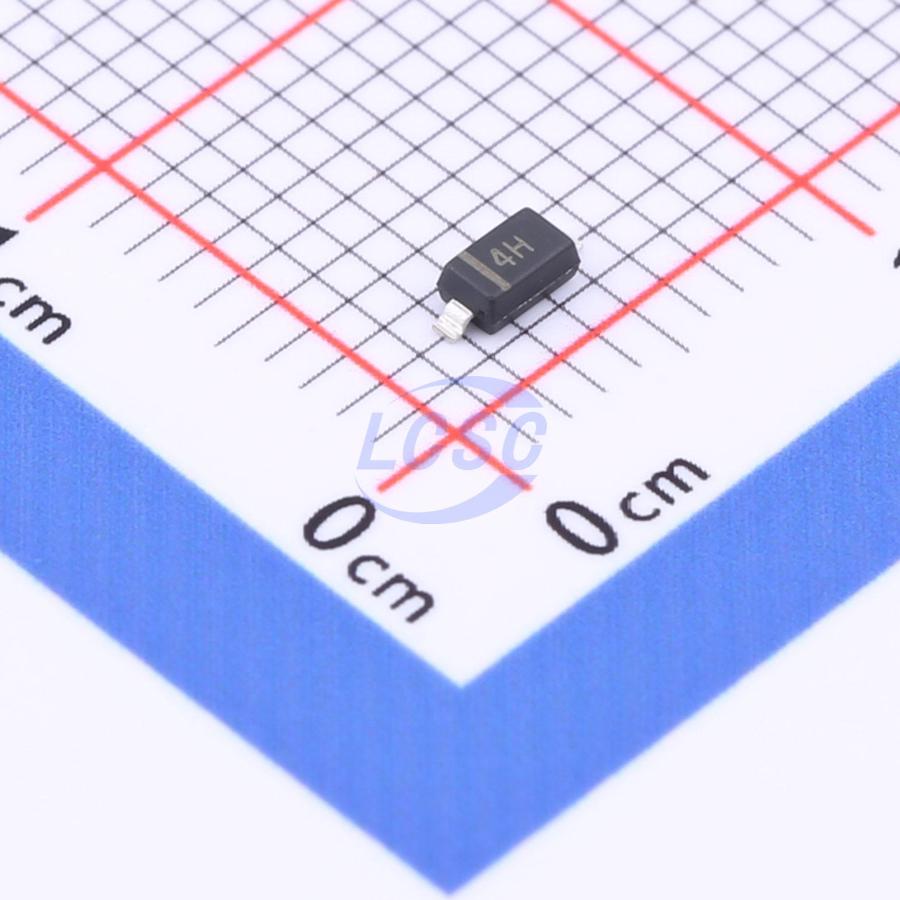

MM1Z3V6BW
Zener Diode 3.6V 500mW Surface Mount SOD-123W
SOD-123WROHS CompliantActive
DIODE ZENER 3.6V 500mW SOD-123W
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MM1Z3V6BW
- Store part #
- C2856888
- Package / case
- SOD-123W
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C2856888
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.32 | ₹116.00 |
| 500+ | ₹1.81 | ₹905.00 |
| 3,000+ | ₹1.48 | ₹4,440.00 |
| 6,000+ | ₹1.31 | ₹7,860.00 |
| 24,000+ | ₹1.18 | ₹28,320.00 |
| 45,000+ | ₹1.10 | ₹49,500.00 |
50 × ₹2.32
₹116.00
excl. GST
₹136.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM1Z3V6BW
₹116.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 130Ω
- Zener Voltage(Range)
- 3.53V~3.67V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.029 g
Overview
Key features
- Total power dissipation: 500mW max.
- Wide Zener reverse voltage range, 2.0V ~ 75V.
- Small plastic package for surface mount design.
- Tolerance approximately ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM1Z3V6W#C2856850JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 3,000 | ₹2.45 · 3,000 in stock | View |
 | MM1Z3V9BW#C2856889JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 2,650 | ₹2.38 · 2,650 in stock | View |
 | MM1Z3V3BW#C2856887JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 1,650 | ₹2.49 · 1,650 in stock | View |
 | BZT52C3V6Q#C2857071JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | On request | ₹2.37 · 0 in stock | View |
