JSMSEMIDatasheet (PDF)

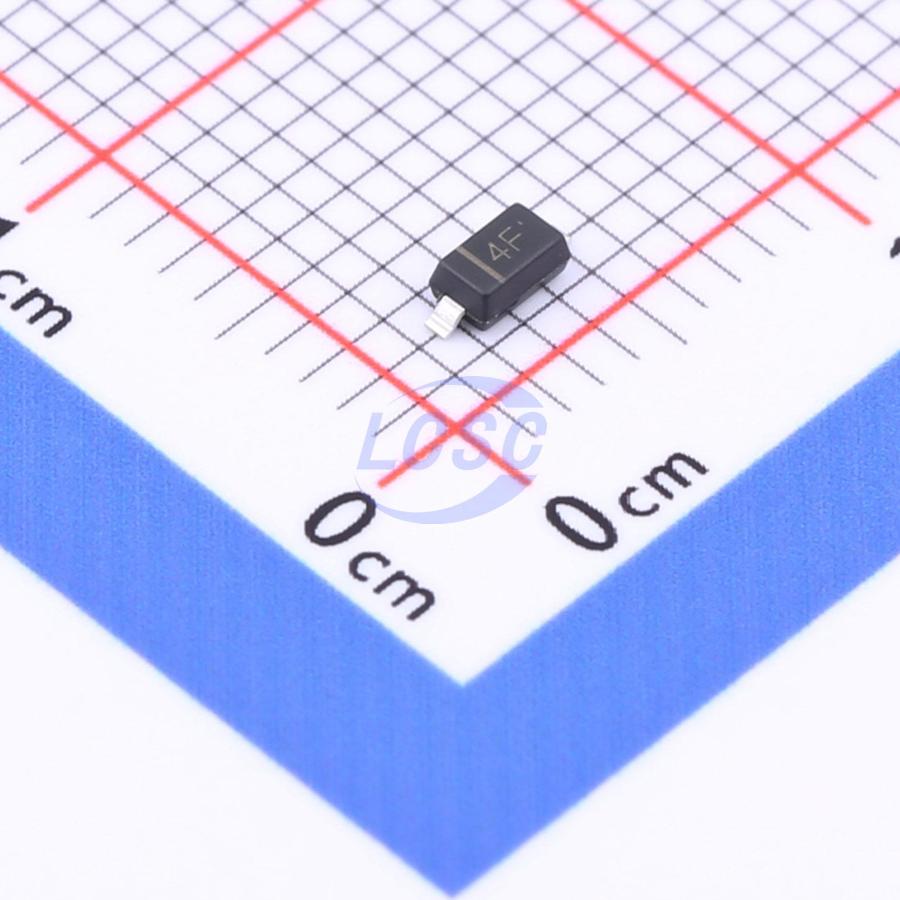

MM1Z3V3BW
Zener Diode 3.3V 500mW Surface Mount SOD-123W
SOD-123WROHS CompliantActive
DIODE ZENER 3.3V 500mW SOD-123W
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MM1Z3V3BW
- Store part #
- C2856887
- Package / case
- SOD-123W
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C2856887
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.49 | ₹124.50 |
| 500+ | ₹1.96 | ₹980.00 |
| 3,000+ | ₹1.69 | ₹5,070.00 |
| 6,000+ | ₹1.51 | ₹9,060.00 |
| 24,000+ | ₹1.36 | ₹32,640.00 |
| 45,000+ | ₹1.27 | ₹57,150.00 |
50 × ₹2.49
₹124.50
excl. GST
₹146.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM1Z3V3BW
₹124.50 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 130Ω
- Zener Voltage(Range)
- 3.23V~3.37V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.017 g
Overview
Key features
- Total power dissipation: 500mW max.
- Wide Zener reverse voltage range, 2.0V to 75V.
- Small plastic package for SMT design.
- Tolerance approximately ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V3Q#C2857070JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 2,900 | ₹2.54 · 2,900 in stock | View |
 | MM1Z3V6BW#C2856888JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 1,400 | ₹2.32 · 1,400 in stock | View |
 | MM1Z3V3W#C2856849JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | On request | ₹2.28 · 0 in stock | View |
 | MM1Z3V0BW#C2856886JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | On request | ₹2.25 · 0 in stock | View |
