NexperiaDatasheet (PDF)

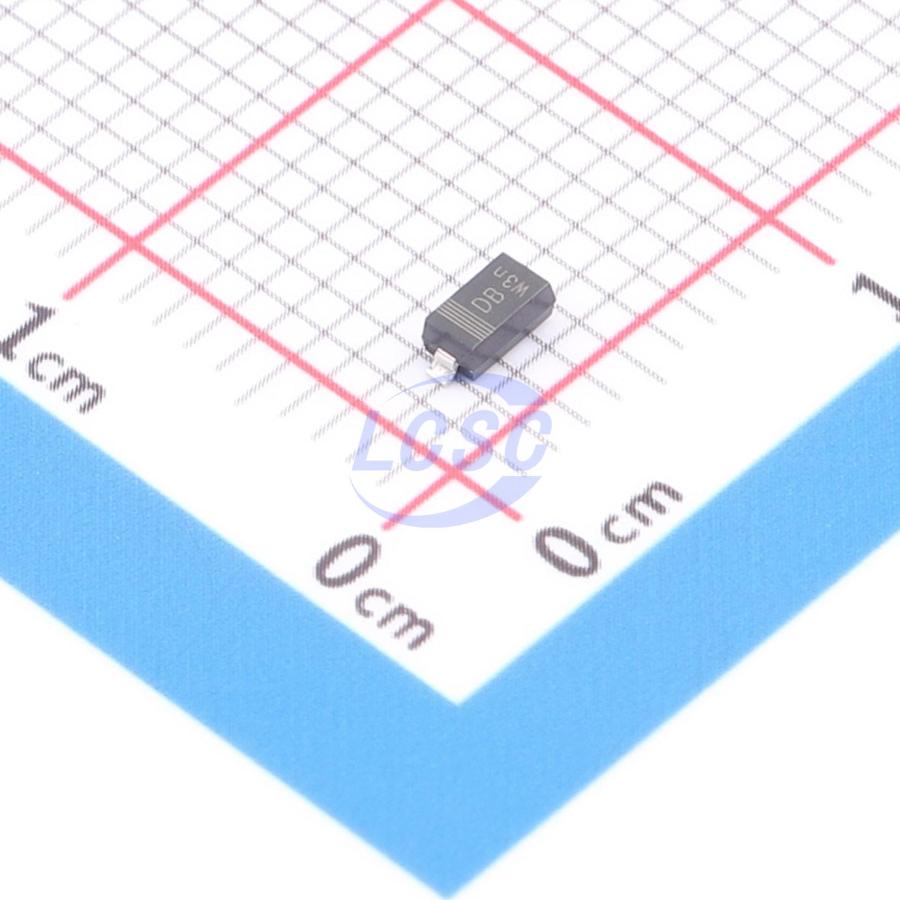

BZT52-B3V6J
1 Independent 3.53V~3.67V 3.6V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B3V6J
- Store part #
- C550210
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C550210
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.38 | ₹126.90 |
| 50+ | ₹19.82 | ₹991.00 |
| 150+ | ₹17.44 | ₹2,616.00 |
| 500+ | ₹14.47 | ₹7,235.00 |
| 2,500+ | ₹13.15 | ₹32,875.00 |
| 5,000+ | ₹12.36 | ₹61,800.00 |
5 × ₹25.38
₹126.90
excl. GST
₹149.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B3V6J
₹126.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.53V~3.67V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.323 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52B3V6-E3-08#C3738281VISHAY · SOD-123 | VISHAY | SOD-123 | 2,595 | ₹18.83 · 2,595 in stock | View | |
 | BZT52B3V6HE3-TP#C3740382MCC · SOD-123 | MCC | SOD-123 | 2,580 | ₹5.81 · 2,580 in stock | View |
 | BZT52-B3V6-QX#C20235099Nexperia · SOD-123 | Nexperia | SOD-123 | 2,870 | ₹5.33 · 2,870 in stock | View |
 | MMSZ3V6T1G#C236186onsemi · SOD-123 | onsemi | SOD-123 | 5,120 | ₹4.87 · 5,120 in stock | View |
 | BZT52B3V6#C3647088MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 1,240 | ₹2.95 · 1,240 in stock | View |
