NexperiaDatasheet (PDF)

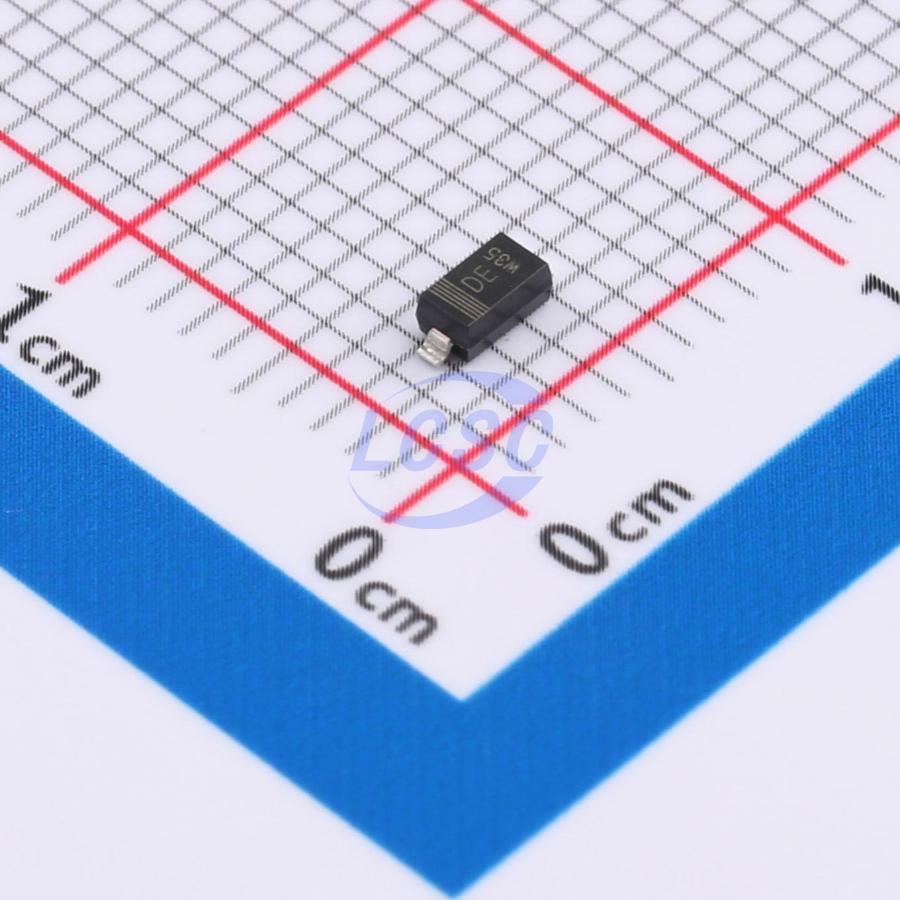

BZT52-B4V7X
Zener Diode 1 Independent 4.7V 590mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 4.7V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B4V7X
- Store part #
- C550221
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C550221
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.58 | ₹91.60 |
| 200+ | ₹3.53 | ₹706.00 |
| 600+ | ₹2.96 | ₹1,776.00 |
| 3,000+ | ₹2.62 | ₹7,860.00 |
| 9,000+ | ₹2.32 | ₹20,880.00 |
| 21,000+ | ₹2.16 | ₹45,360.00 |
20 × ₹4.58
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-B4V7X
₹91.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 78Ω
- Zener Voltage(Range)
- 4.61V~4.79V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.029 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-B4V7J#C550220Nexperia · SOD-123 | Nexperia | SOD-123 | 140 | ₹4.52 · 140 in stock | View |
 | BZT52B4V7Q#C20600006YANGJIE · SOD-123 | YANGJIE | SOD-123 | 20 | ₹4.92 · 20 in stock | View |
 | BZT52B4V7#C7427949NH · SOD-123 | NH | SOD-123 | 5,850 | ₹2.33 · 5,850 in stock | View |
 | MM1Z4V7W#C2856853JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 950 | ₹2.49 · 950 in stock | View |
 | MM1Z4V7BW#C2856891JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 350 | ₹2.32 · 350 in stock | View |
