NexperiaDatasheet (PDF)

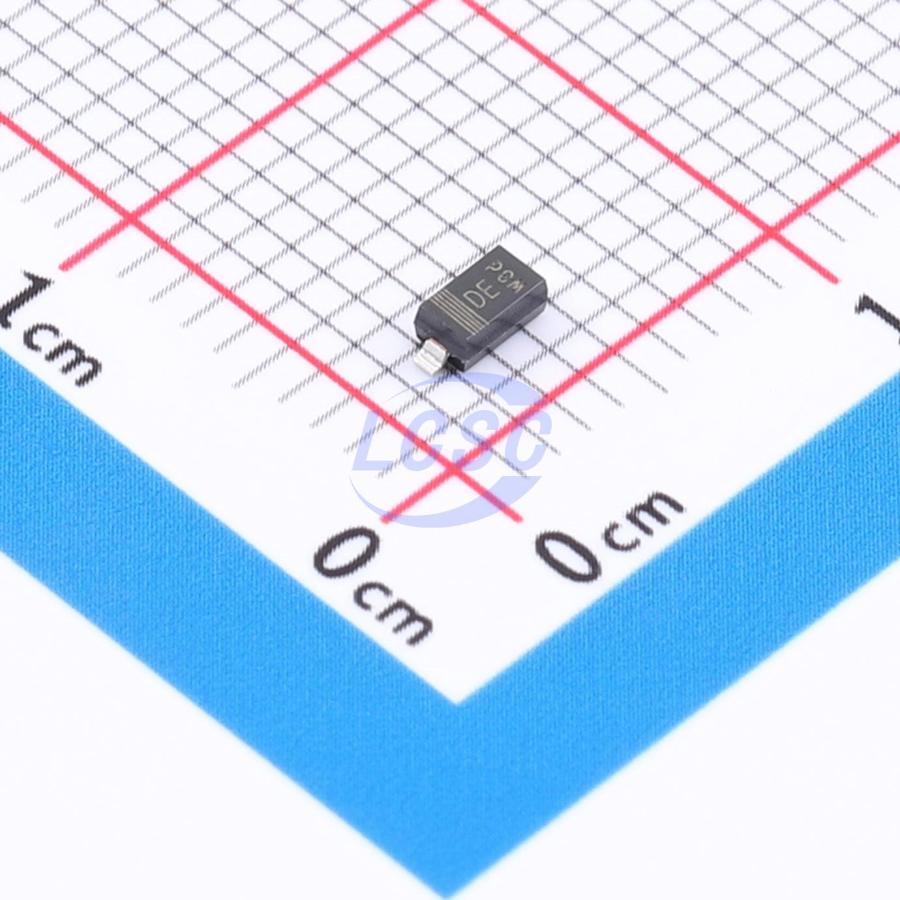

BZT52-B4V7J
1 Independent 4.61V~4.79V 4.7V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 4.7V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B4V7J
- Store part #
- C550220
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C550220
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.52 | ₹90.40 |
| 200+ | ₹3.55 | ₹710.00 |
| 600+ | ₹3.00 | ₹1,800.00 |
| 2,000+ | ₹2.67 | ₹5,340.00 |
| 10,000+ | ₹2.39 | ₹23,900.00 |
| 20,000+ | ₹2.24 | ₹44,800.00 |
20 × ₹4.52
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B4V7J
₹90.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 78Ω
- Zener Voltage(Range)
- 4.61V~4.79V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-B4V7X#C550221Nexperia · SOD-123 | Nexperia | SOD-123 | 2,320 | ₹4.58 · 2,320 in stock | View |
 | BZT52B4V7Q#C20600006YANGJIE · SOD-123 | YANGJIE | SOD-123 | 20 | ₹4.92 · 20 in stock | View |
 | BZT52B4V7#C7427949NH · SOD-123 | NH | SOD-123 | 5,850 | ₹2.33 · 5,850 in stock | View |
 | BZT52B4V7-HE3_A-08#C20561454VISHAY · SOD-123 | VISHAY | SOD-123 | 235 | ₹104.29 · 235 in stock | View |
| BZT52B4V7HE3-TP#C3729477MCC · SOD-123 | MCC | SOD-123 | 3,000 | ₹6.15 · 3,000 in stock | View | |
