VISHAYDatasheet (PDF)

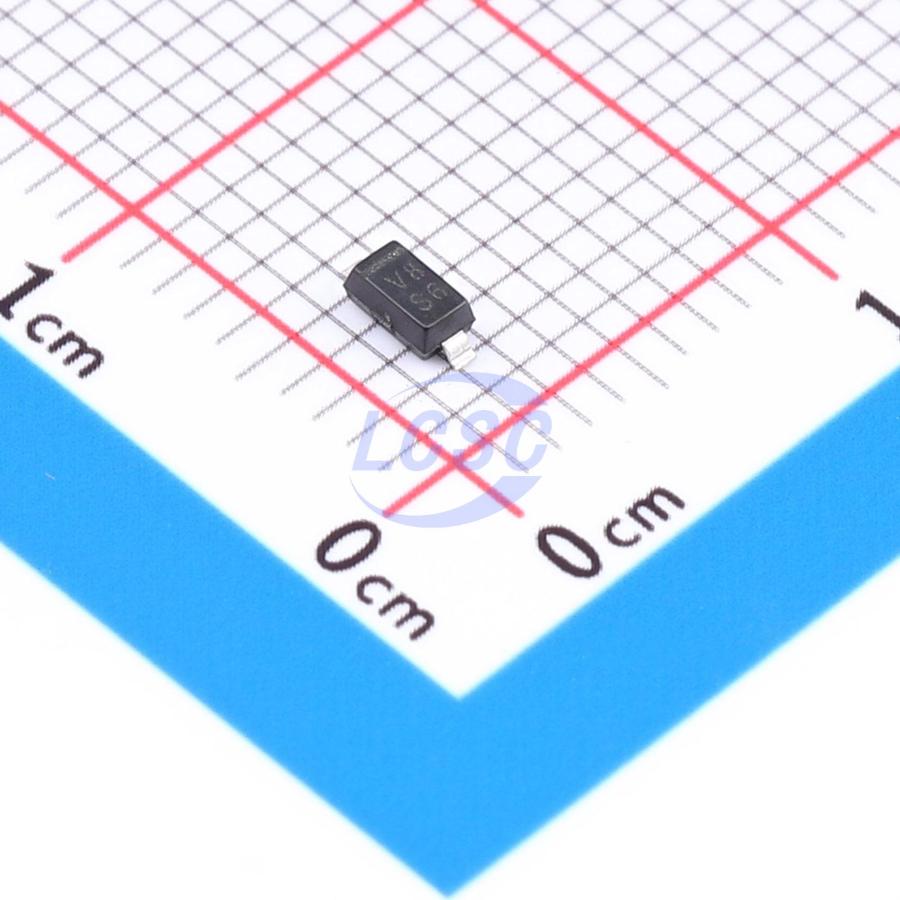

BZT52B4V7-HE3_A-08
1 Independent 4.61V~4.79V 4.7V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52B4V7-HE3_A-08
- Store part #
- C20561454
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
235 in stock
#C20561454
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.29 | ₹104.29 |
| 10+ | ₹85.00 | ₹850.00 |
| 30+ | ₹75.46 | ₹2,263.80 |
| 100+ | ₹65.91 | ₹6,591.00 |
| 500+ | ₹60.06 | ₹30,030.00 |
| 1,000+ | ₹57.03 | ₹57,030.00 |
1 × ₹104.29
₹104.29
excl. GST
₹123.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
BZT52B4V7-HE3_A-08
₹104.29 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@1V
- Impedance(Zzt)
- 78Ω
- Zener Voltage(Range)
- 4.61V~4.79V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52B4V7-E3-08#C3741444VISHAY · SOD-123 | VISHAY | SOD-123 | 347 | ₹78.97 · 347 in stock | View | |
| BZT52B4V7HE3-TP#C3729477MCC · SOD-123 | MCC | SOD-123 | 3,000 | ₹6.15 · 3,000 in stock | View | |
 | BZT52B4V7Q#C20600006YANGJIE · SOD-123 | YANGJIE | SOD-123 | 20 | ₹4.92 · 20 in stock | View |
 | BZT52B4V7#C7427949NH · SOD-123 | NH | SOD-123 | 5,850 | ₹2.33 · 5,850 in stock | View |
 | BZT52-B4V7J#C550220Nexperia · SOD-123 | Nexperia | SOD-123 | 140 | ₹4.52 · 140 in stock | View |
