VISHAYDatasheet (PDF)

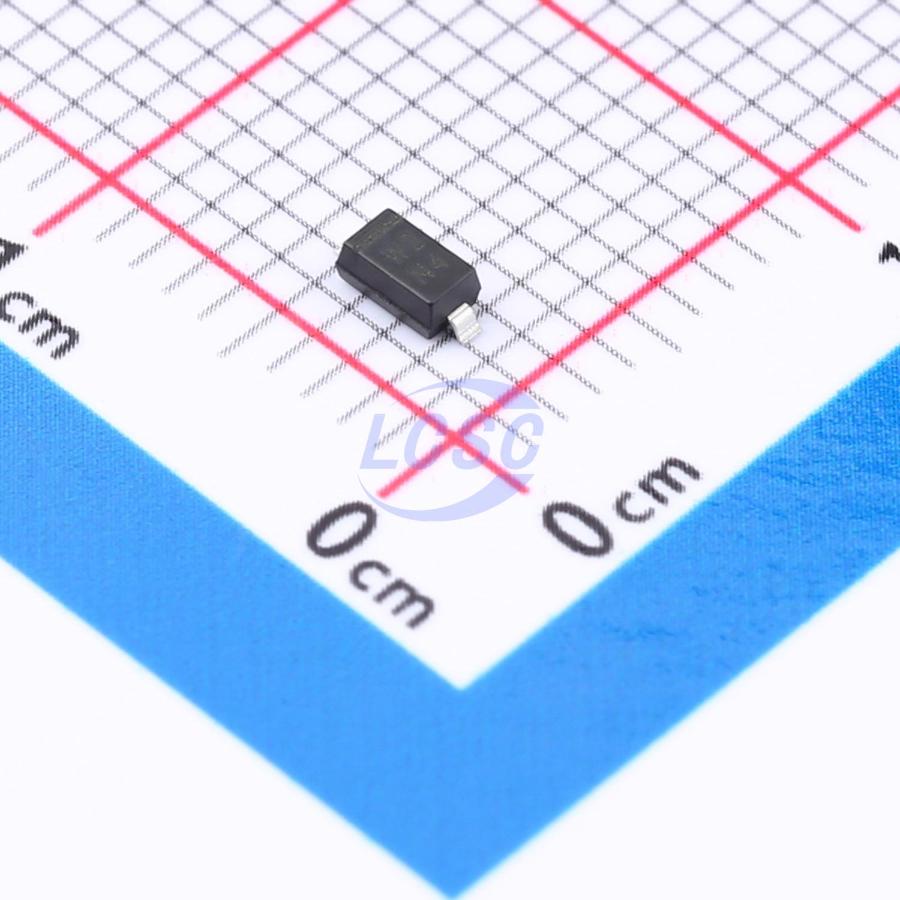

BZT52C2V7-E3-08
Zener Diode Independent 2.7V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 2.7V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C2V7-E3-08
- Store part #
- C3734141
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
230 in stock
#C3734141
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.24 | ₹624.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 3,000+ | ₹4.90 | ₹14,700.00 |
| 6,000+ | ₹4.43 | ₹26,580.00 |
| 9,000+ | ₹4.21 | ₹37,890.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C2V7-E3-08
₹77.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 1nA
- Impedance(Zzt)
- 83Ω
- Zener Voltage(Range)
- 2.57V~2.84V
- Zener Voltage(Nom)
- 2.7V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV, Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4682-E3-08#C3733106VISHAY · SOD-123 | VISHAY | SOD-123 | 480 | ₹9.14 · 480 in stock | View |
 | BZT52C2V7#C20421337FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 5,000 | ₹1.75 · 5,000 in stock | View |
 | BZT52C2V7#C5352973FOSAN · SOD-123 | FOSAN | SOD-123 | 3,500 | ₹1.87 · 3,500 in stock | View |
 | BZT52C2V7#C726988TWGMC · SOD-123 | TWGMC | SOD-123 | 450 | ₹1.85 · 450 in stock | View |
 | BZT52C2V7Q#C2857067JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 1,300 | ₹2.49 · 1,300 in stock | View |
