VISHAYDatasheet (PDF)

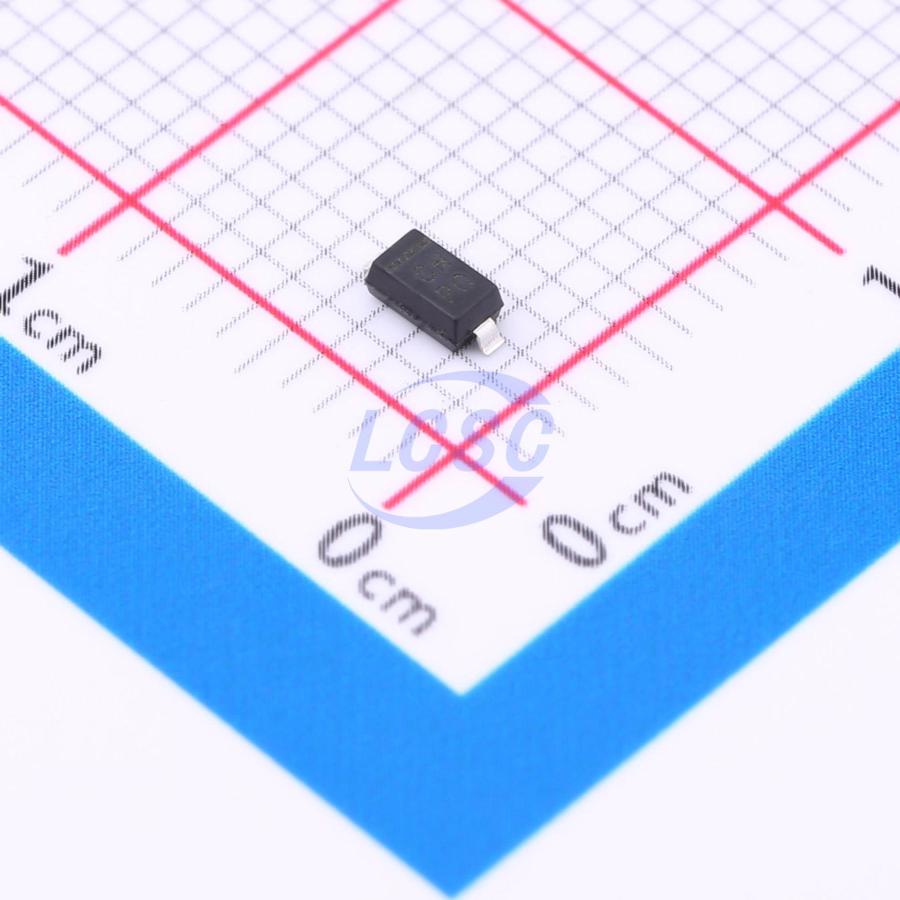

MMSZ4682-E3-08
Zener Diode Independent 2.7V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 2.7V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ4682-E3-08
- Store part #
- C3733106
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C3733106
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.14 | ₹91.40 |
| 100+ | ₹7.28 | ₹728.00 |
| 300+ | ₹6.35 | ₹1,905.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.09 | ₹30,540.00 |
| 9,000+ | ₹4.82 | ₹43,380.00 |
10 × ₹9.14
₹91.40
excl. GST
₹107.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4682-E3-08
₹91.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 1uA@1V
- Zener Voltage(Range)
- 2.57V~2.84V
- Zener Voltage(Nom)
- 2.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- Standard Zener voltage tolerance is ± 5%
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8 kV, Machine model >800 V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C2V7-E3-08#C3734141VISHAY · SOD-123 | VISHAY | SOD-123 | 230 | ₹7.79 · 230 in stock | View |
 | LMSZ5223BT1G#C131756LRC · SOD-123 | LRC | SOD-123 | 100 | ₹2.70 · 100 in stock | View |
 | BZT52C2V7Q#C2857067JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 1,300 | ₹2.49 · 1,300 in stock | View |
 | BZT52C2V7#C54930246HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 3,000 | ₹1.43 · 3,000 in stock | View |
 | MMSZ2V7T1G#C891714onsemi · SOD-123 | onsemi | SOD-123 | 245 | ₹14.17 · 245 in stock | View |
