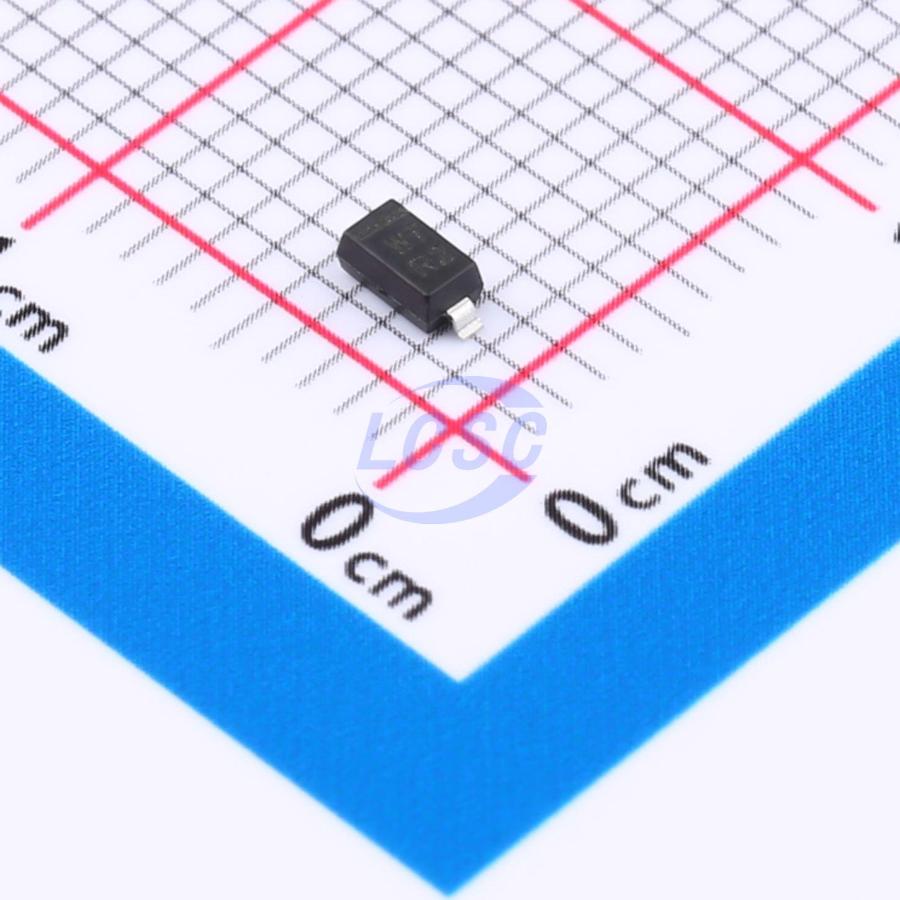

BZT52C30-E3-08
Zener Diode Independent 30V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 30V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C30-E3-08
- Store part #
- C3735418
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
290 in stock
#C3735418
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.47 | ₹84.70 |
| 100+ | ₹6.73 | ₹673.00 |
| 300+ | ₹5.87 | ₹1,761.00 |
| 3,000+ | ₹5.23 | ₹15,690.00 |
| 6,000+ | ₹4.71 | ₹28,260.00 |
| 9,000+ | ₹4.45 | ₹40,050.00 |
10 × ₹8.47
₹84.70
excl. GST
₹99.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C30-E3-08
₹84.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@22.5V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 28.5V~31.5V
- Zener Voltage(Nom)
- 30V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C30-7-F#C163721DIODES · SOD-123 | DIODES | SOD-123 | 275 | ₹8.41 · 275 in stock | View |
 | BZT52C30Q#C2857097JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 100 | ₹2.50 · 100 in stock | View |
 | BZT52C30#C54930419HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,200 | ₹1.40 · 2,200 in stock | View |
 | MM1Z30#C169495Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 1,300 | ₹2.41 · 1,300 in stock | View |
 | MM1Z30W#C2856872JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 50 | ₹2.29 · 50 in stock | View |
