VISHAYDatasheet (PDF)

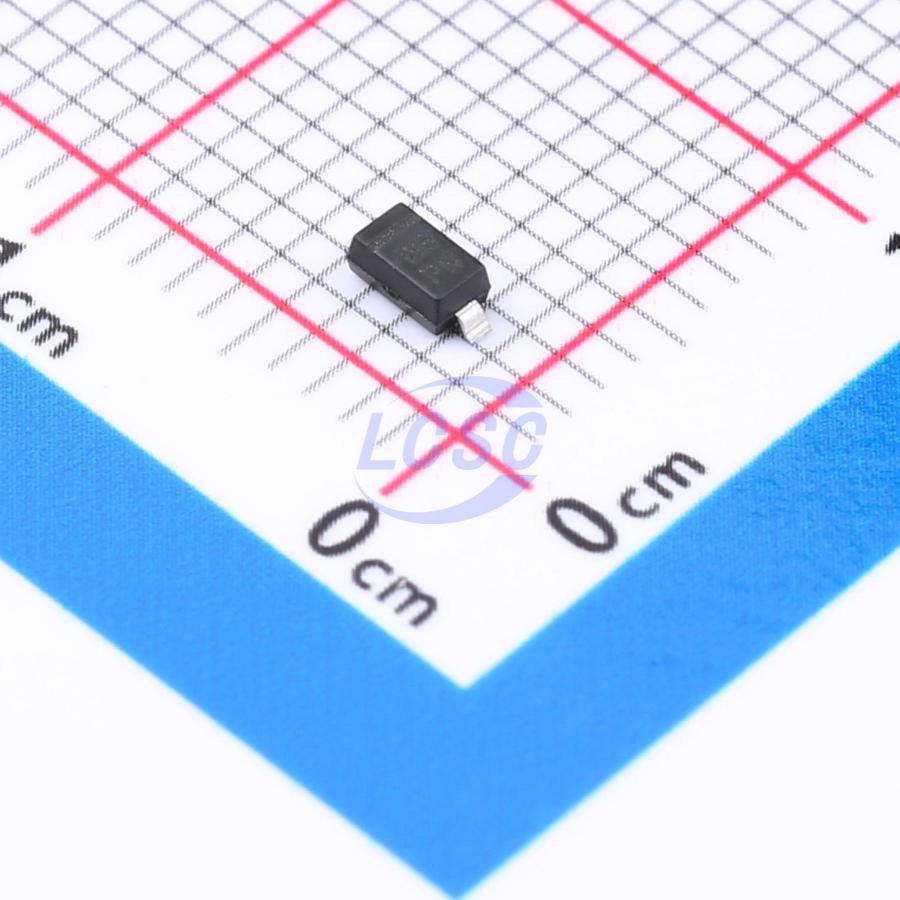

BZT52C3V9-E3-08
Zener Diode Independent 3.9V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3.9V 500mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C3V9-E3-08
- Store part #
- C5342963
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
330 in stock
#C5342963
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.53 | ₹105.30 |
| 100+ | ₹8.76 | ₹876.00 |
| 300+ | ₹7.87 | ₹2,361.00 |
| 3,000+ | ₹7.21 | ₹21,630.00 |
| 6,000+ | ₹6.68 | ₹40,080.00 |
| 9,000+ | ₹6.40 | ₹57,600.00 |
10 × ₹10.53
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C3V9-E3-08
₹105.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LBZT52C3V9T1G#C12768LRC · SOD-123 | LRC | SOD-123 | 2,850 | ₹3.14 · 2,850 in stock | View |
 | BZT52C3V9#C2114JSCJ · SOD-123 | JSCJ | SOD-123 | 3,450 | ₹2.55 · 3,450 in stock | View |
 | BZT52C3V9#C22368888Wild Goose · SOD-123 | Wild Goose | SOD-123 | 2,650 | ₹1.47 · 2,650 in stock | View |
 | AD-BZT52C3V9#C2975795JSCJ · SOD-123 | JSCJ | SOD-123 | 900 | ₹2.63 · 900 in stock | View |
 | BZT52C3V9W#C3019305Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 2,250 | ₹1.76 · 2,250 in stock | View |
