DIODESDatasheet (PDF)

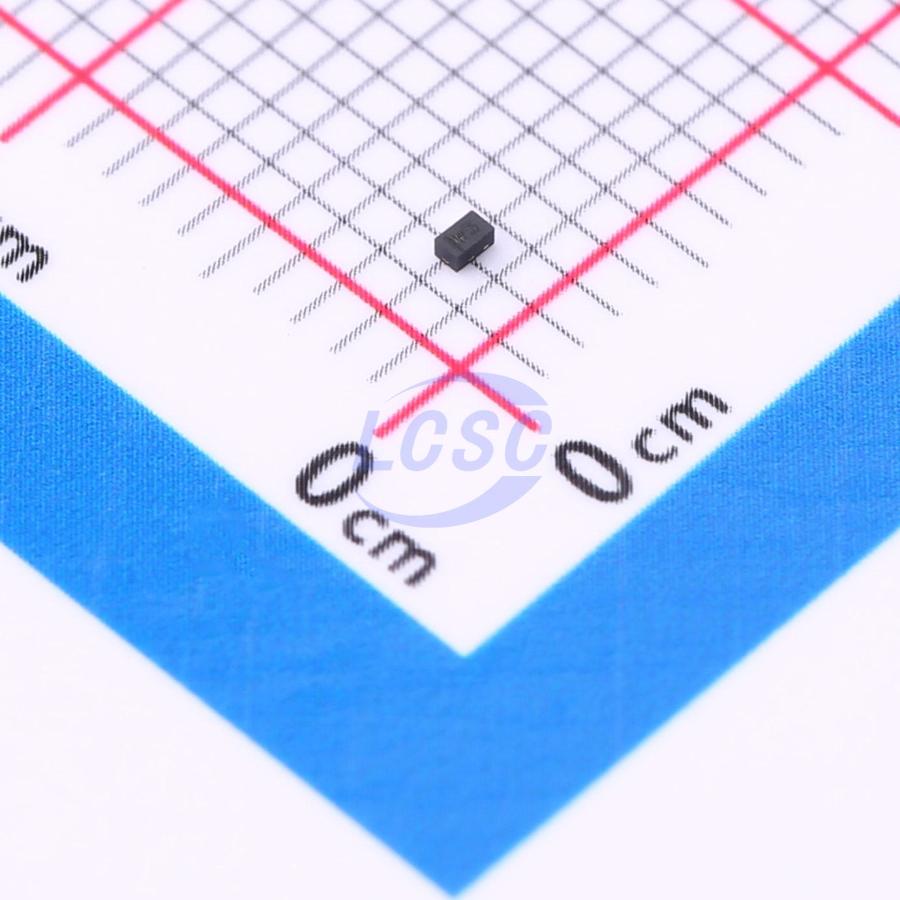

BZT52C3V9LP-7
Zener Diode 3.9V 250mW X1-Surface Mount DFN1006-2
X1-DFN1006-2ROHS CompliantActive
DIODE ZENER 3.9V 250mW X1-DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C3V9LP-7
- Store part #
- C151051
- Package / case
- X1-DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C151051
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.43 | ₹104.30 |
| 100+ | ₹8.33 | ₹833.00 |
| 300+ | ₹7.30 | ₹2,190.00 |
| 3,000+ | ₹6.52 | ₹19,560.00 |
| 6,000+ | ₹5.89 | ₹35,340.00 |
| 9,000+ | ₹5.58 | ₹50,220.00 |
10 × ₹10.43
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C3V9LP-7
₹104.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 3uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
Key features
- Ultra-Small Leadless Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Lead Free By Design/ReHS Compliant
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PZU3.9B2L,315#C553712Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | 99 | ₹55.61 · 99 in stock | View |
 | BZX884B3V9#C54830628R+O · DFN1006-2L | R+O | DFN1006-2L | 10,060 | ₹4.64 · 10,060 in stock | View |
 | BZX884-C3V9,315#C551237Nexperia · SOD-882 | Nexperia | SOD-882 | 5 | ₹12.28 · 5 in stock | View |
 | AD-DW52C3V9LED02#C7472361JSCJ · WBFBP-02C | JSCJ | WBFBP-02C | 9,220 | ₹4.21 · 9,220 in stock | View |
 | BZX884S-B3V9-QYL#C5566812Nexperia · SOD-882 | Nexperia | SOD-882 | 200 | ₹24.52 · 200 in stock | View |
