NexperiaDatasheet (PDF)

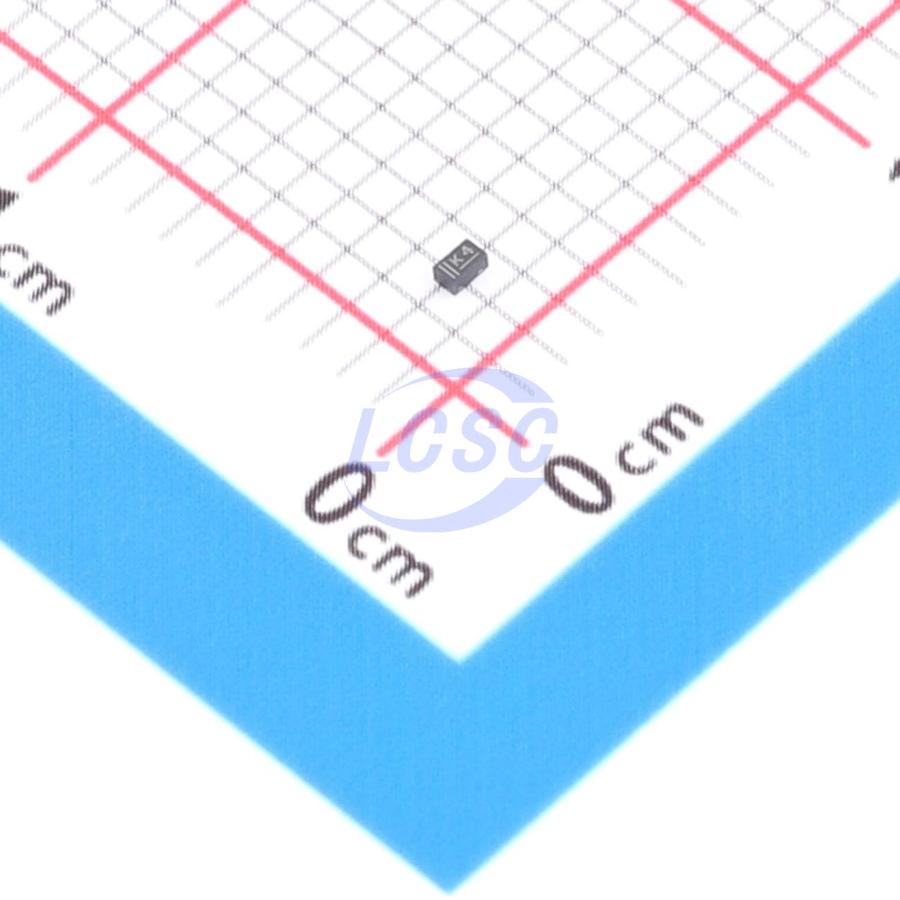

PZU3.9B2L,315
1 Independent 3.87V~4.1V 3.9V DFN1006-2 Single Zener Diodes RoHS
DFN1006-2ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU3.9B2L,315
- Store part #
- C553712
- Package / case
- DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C553712
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.61 | ₹55.61 |
| 10+ | ₹43.45 | ₹434.50 |
| 30+ | ₹38.23 | ₹1,146.90 |
| 100+ | ₹31.71 | ₹3,171.00 |
| 500+ | ₹28.89 | ₹14,445.00 |
| 1,000+ | ₹27.16 | ₹27,160.00 |
1 × ₹55.61
₹55.61
excl. GST
₹65.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PZU3.9B2L,315
₹55.61 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 3uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.87V~4.1V
- Zener Voltage(Nom)
- 3.9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
General- purpose Zener diodes in a SOD882 leadless ultra small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 250 mW
- Tolerance series: B: approximately ± 5%; B2: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface- mounted design
- AEC- Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX884B3V9#C54830628R+O · DFN1006-2L | R+O | DFN1006-2L | 10,060 | ₹4.64 · 10,060 in stock | View |
 | BZT52C3V9LP-7#C151051DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | 950 | ₹10.43 · 950 in stock | View |
 | BZX884-C3V9,315#C551237Nexperia · SOD-882 | Nexperia | SOD-882 | 5 | ₹12.28 · 5 in stock | View |
 | BZX884S-B3V9-QYL#C5566812Nexperia · SOD-882 | Nexperia | SOD-882 | 200 | ₹24.52 · 200 in stock | View |
 | AD-DW52C3V9LED02#C7472361JSCJ · WBFBP-02C | JSCJ | WBFBP-02C | 9,220 | ₹4.21 · 9,220 in stock | View |
