VISHAYDatasheet (PDF)

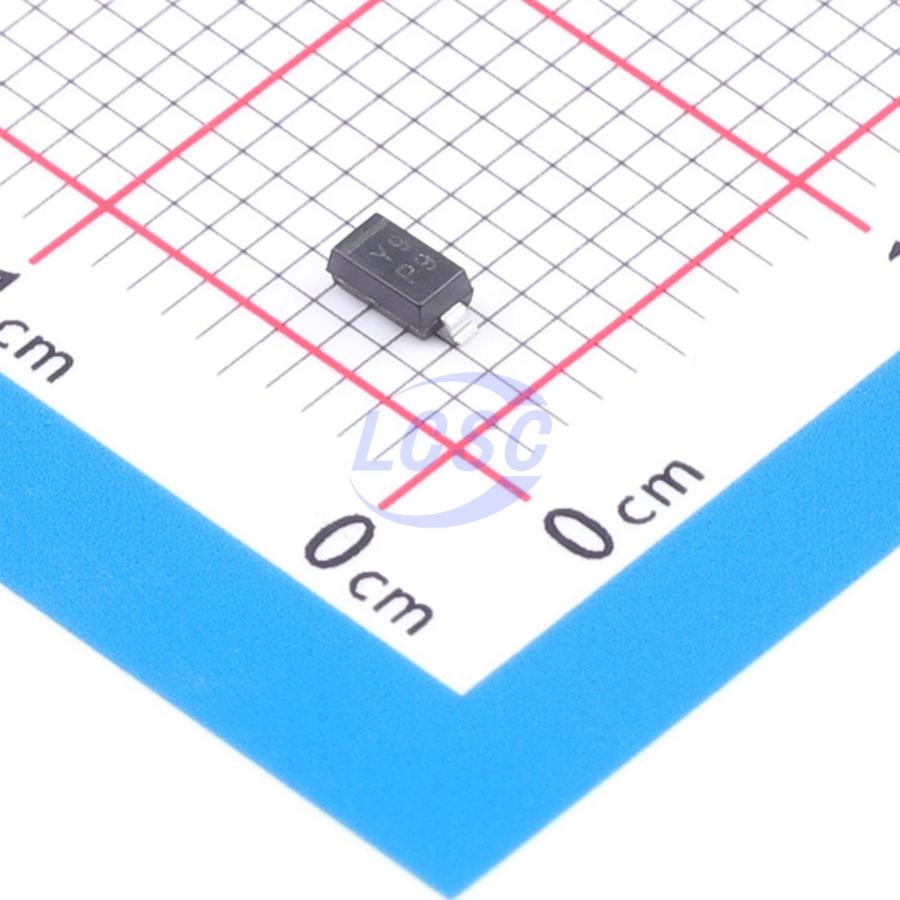

BZT52C5V1-G3-08
1 Independent 4.85V~5.36V 5.1V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C5V1-G3-08
- Store part #
- C7223826
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
310 in stock
#C7223826
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.71 | ₹123.55 |
| 50+ | ₹24.18 | ₹1,209.00 |
| 150+ | ₹23.83 | ₹3,574.50 |
| 500+ | ₹23.48 | ₹11,740.00 |
5 × ₹24.71
₹123.55
excl. GST
₹145.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C5V1-G3-08
₹123.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 410mW
- Reverse Leakage Current (Ir)
- 100nA@800mV
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 4.85V~5.36V
- Zener Voltage(Nom)
- 5.1V
- Impedance(Zzk)
- 480Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Key features
- Silicon planar Zener diode
- Zener voltage graded per international E24 standard. Standard Zener voltage tolerance is ±5%, indicated by "C" in the order code. For 2% tolerance, replace "C" with "B"
- AEC-Q101 compliant versions available (part number on request)
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- Base part number - G3 denotes green, commercial grade
- IZT1 = 5 mA, IZT2 = 1 mA or 0.5 mA (1) Measured with pulse tp = 5 ms (2) Provided that the leads are kept at ambient temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-C5V1-AU_R1_000A1#C5454402PANJIT · SOD-123 | PANJIT | SOD-123 | 100 | ₹4.31 · 100 in stock | View |
 | BZT52-C5V1_R1_00001#C2901406PANJIT · SOD-123 | PANJIT | SOD-123 | 3,320 | ₹4.21 · 3,320 in stock | View |
 | BZT52C5V1-HE3_A-08#C20564951VISHAY · SOD-123 | VISHAY | SOD-123 | 2,865 | ₹40.13 · 2,865 in stock | View |
 | BZT52-B5V1_R1_00001#C461723PANJIT · SOD-123 | PANJIT | SOD-123 | 3,580 | ₹5.33 · 3,580 in stock | View |
 | BZT52C5V1Q#C2857077JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 2,800 | ₹2.25 · 2,800 in stock | View |
