VISHAYDatasheet (PDF)

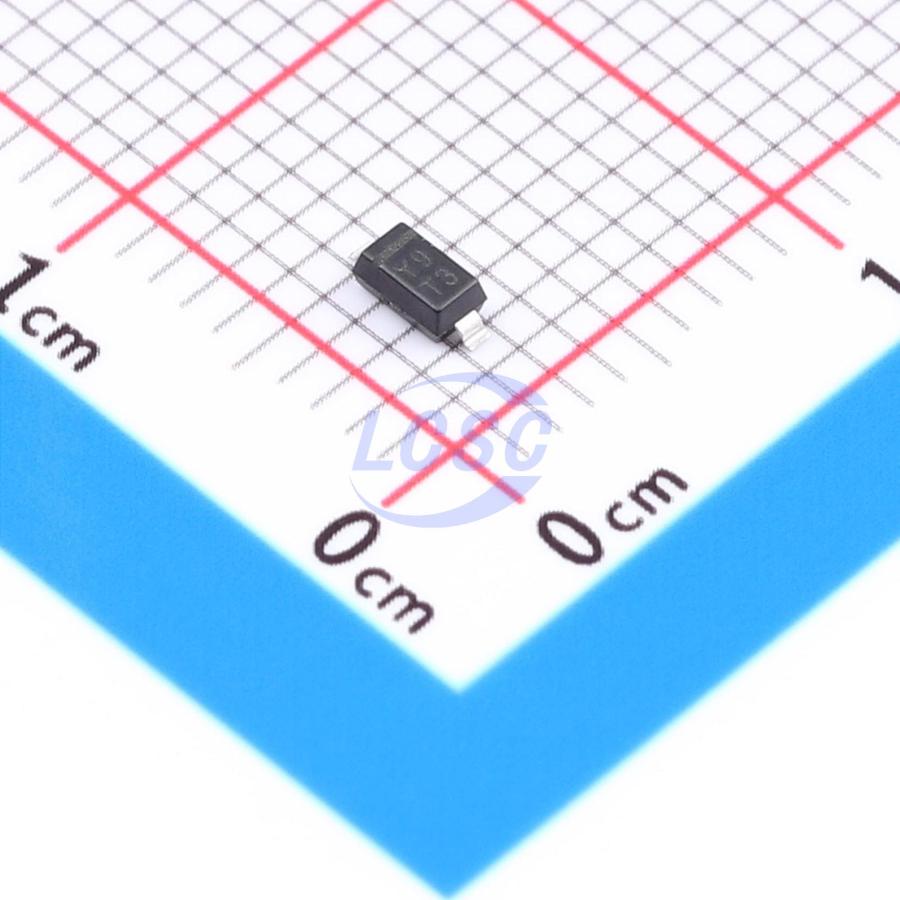

BZT52C5V1-HE3_A-08
1 Independent 4.85V~5.36V 5.1V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C5V1-HE3_A-08
- Store part #
- C20564951
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C20564951
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.13 | ₹200.65 |
| 50+ | ₹31.94 | ₹1,597.00 |
| 150+ | ₹28.42 | ₹4,263.00 |
| 500+ | ₹24.04 | ₹12,020.00 |
| 3,000+ | ₹22.09 | ₹66,270.00 |
| 6,000+ | ₹20.92 | ₹1,25,520.00 |
5 × ₹40.13
₹200.65
excl. GST
₹236.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C5V1-HE3_A-08
₹200.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 4.85V~5.36V
- Zener Voltage(Nom)
- 5.1V
- Impedance(Zzk)
- 480Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-C5V1-AU_R1_000A1#C5454402PANJIT · SOD-123 | PANJIT | SOD-123 | 100 | ₹4.31 · 100 in stock | View |
 | BZT52C5V1-G3-08#C7223826VISHAY · SOD-123 | VISHAY | SOD-123 | 310 | ₹24.71 · 310 in stock | View |
 | BZT52C5V1Q#C2857077JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 2,800 | ₹2.25 · 2,800 in stock | View |
 | BZT52C5V1#C54930252HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,100 | ₹1.43 · 2,100 in stock | View |
 | BZT52C5V1#C42441812TDSEMIC · SOD-123 | TDSEMIC | SOD-123 | 47,650 | ₹1.83 · 47,650 in stock | View |
