NexperiaDatasheet (PDF)

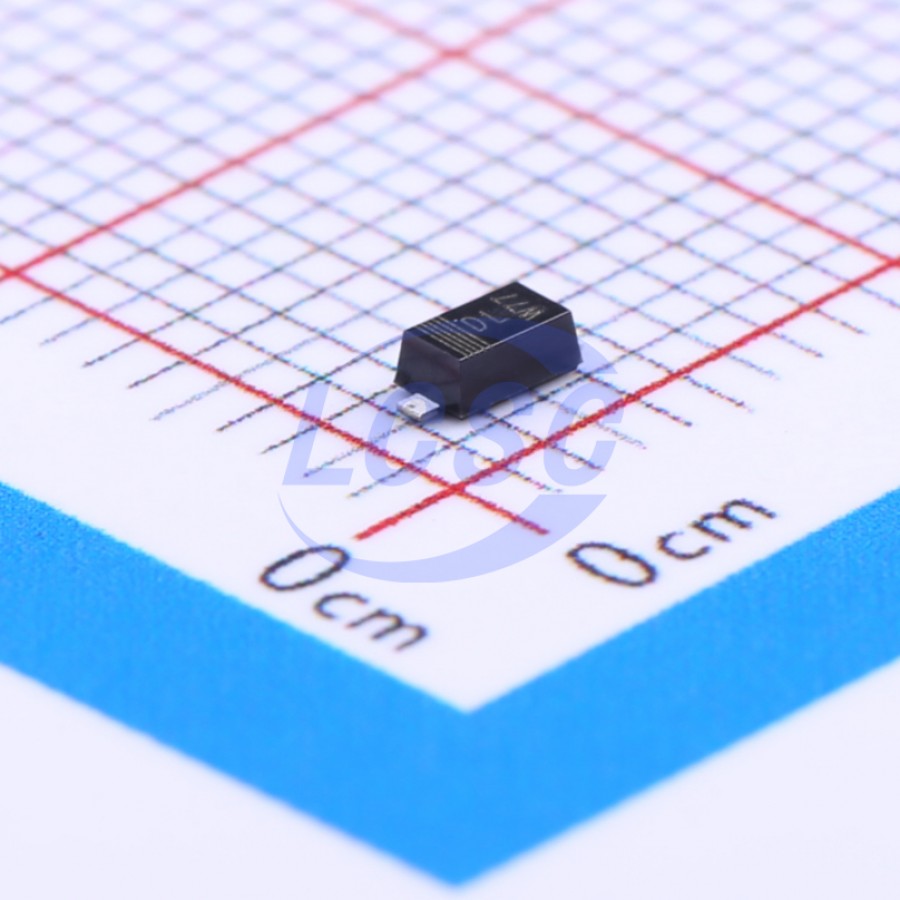

BZT52H-B5V1,115
Zener Diode Independent 5.1V 375mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 5.1V 375mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-B5V1,115
- Store part #
- C179375
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,205 in stock
#C179375
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.67 | ₹143.35 |
| 50+ | ₹22.53 | ₹1,126.50 |
| 150+ | ₹19.90 | ₹2,985.00 |
| 500+ | ₹16.60 | ₹8,300.00 |
| 3,000+ | ₹15.14 | ₹45,420.00 |
| 6,000+ | ₹14.26 | ₹85,560.00 |
5 × ₹28.67
₹143.35
excl. GST
₹169.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-B5V1,115
₹143.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 375mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 5V~5.2V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDZ5.1BGWJ#C552356Nexperia · SOD-123 | Nexperia | SOD-123 | 100 | ₹3.65 · 100 in stock | View |
 | BZT52B5V1#C21714216CBI · SOD-123 | CBI | SOD-123 | 1,100 | ₹1.89 · 1,100 in stock | View |
 | BZT52B5V1#C3019934Slkor · SOD-123 | Slkor | SOD-123 | 700 | ₹2.75 · 700 in stock | View |
 | BZT52B5V1#C3647090MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 2,740 | ₹3.21 · 2,740 in stock | View |
| BZT52B5V1#C7528954amsem · SOD-123 | amsem | SOD-123 | 2,400 | ₹2.34 · 2,400 in stock | View | |
