NexperiaDatasheet (PDF)

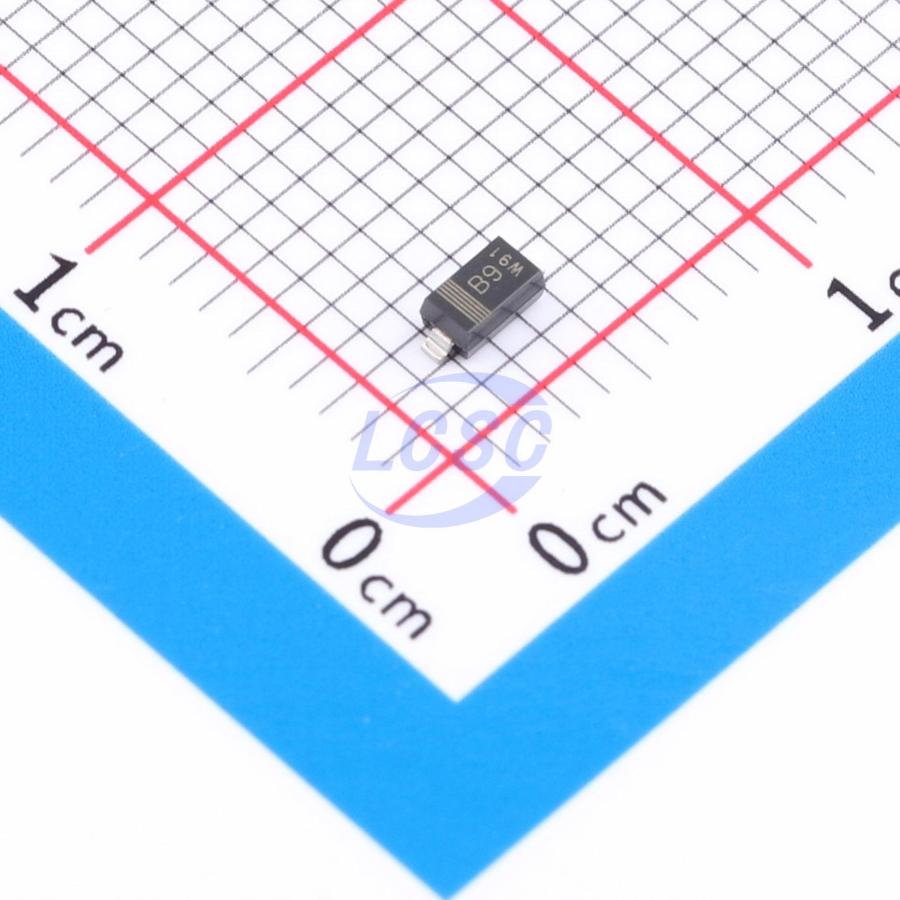

PDZ5.1BGWJ
Zener Diode Independent 5.1V 365mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.1V 365mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- PDZ5.1BGWJ
- Store part #
- C552356
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C552356
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.65 | ₹36.50 |
| 100+ | ₹3.57 | ₹357.00 |
| 300+ | ₹3.52 | ₹1,056.00 |
| 1,000+ | ₹3.48 | ₹3,480.00 |
10 × ₹3.65
₹36.50
excl. GST
₹43.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PDZ5.1BGWJ
₹36.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 365mW
- Reverse Leakage Current (Ir)
- 2uA@1.5V
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 4.96V~5.2V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: P_ZSM ≤ 40 W
- Total power dissipation: P_tot ≤ 365 mW
- Tolerance series: B2: approximately ± 2 %
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current I_R range
- Small plastic package suitable for surface-mounted design
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52H-B5V1,115#C179375Nexperia · SOD-123F | Nexperia | SOD-123F | 1,205 | ₹28.67 · 1,205 in stock | View |
 | MMSZ5231B#C19077422R+O · SOD-123 | R+O | SOD-123 | 16,150 | ₹2.75 · 16,150 in stock | View |
 | TPZ5V1C-123#C46472891TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,700 | ₹2.67 · 1,700 in stock | View |
 | BZT52B5V1#C21714216CBI · SOD-123 | CBI | SOD-123 | 1,100 | ₹1.89 · 1,100 in stock | View |
 | BZT52B5V1#C3019934Slkor · SOD-123 | Slkor | SOD-123 | 700 | ₹2.75 · 700 in stock | View |
