NexperiaDatasheet (PDF)

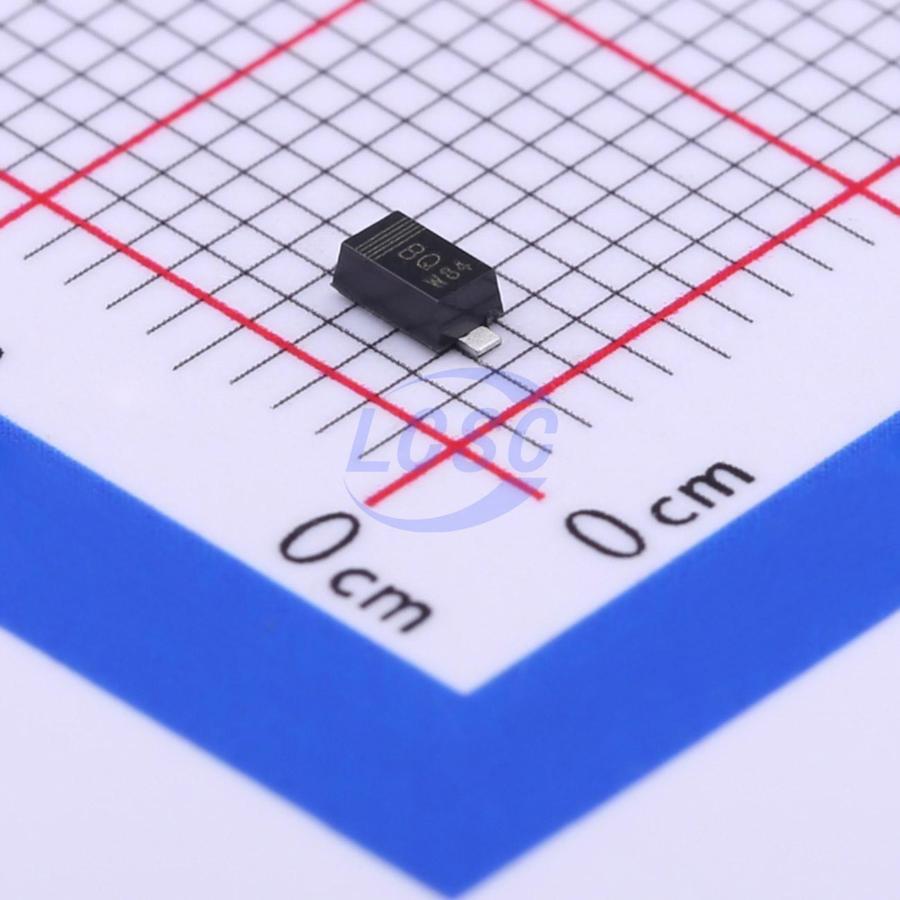

BZT52H-C18,115
Zener Diode Independent 18V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 18V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C18,115
- Store part #
- C404362
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
320 in stock
#C404362
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.58 | ₹91.60 |
| 200+ | ₹3.59 | ₹718.00 |
| 600+ | ₹3.03 | ₹1,818.00 |
| 3,000+ | ₹2.49 | ₹7,470.00 |
| 9,000+ | ₹2.20 | ₹19,800.00 |
| 21,000+ | ₹2.04 | ₹42,840.00 |
20 × ₹4.58
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C18,115
₹91.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 50nA@12.6V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 16.8V~19.1V
- Zener Voltage(Nom)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52HC18WF-7#C5244716DIODES · SOD-123F | DIODES | SOD-123F | 2,650 | ₹11.84 · 2,650 in stock | View |
 | BZT52C18#C2932747GOODWORK · SOD-123 | GOODWORK | SOD-123 | 1,18,400 | ₹1.93 · 1,18,400 in stock | View |
 | BZT52-C18J#C550258Nexperia · SOD-123 | Nexperia | SOD-123 | 125 | ₹16.76 · 125 in stock | View |
 | BZD27C18P#C5455753LGE · SOD-123FL | LGE | SOD-123FL | 1,090 | ₹11.74 · 1,090 in stock | View |
 | MM1W18L#C21713931GOODWORK · SOD-123FL | GOODWORK | SOD-123FL | 1,300 | ₹5.05 · 1,300 in stock | View |
