DIODESDatasheet (PDF)

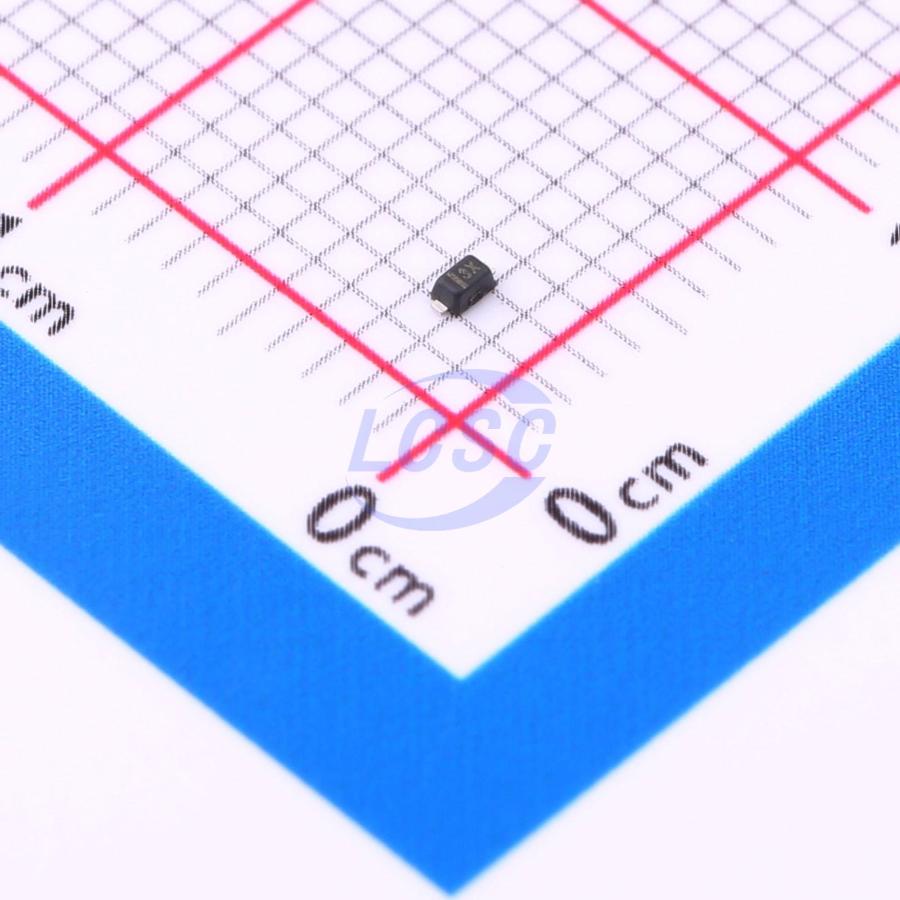

BZT585B9V1T-7
Zener Diode 9.1V 350mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 9.1V 350mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- BZT585B9V1T-7
- Store part #
- C444980
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C444980
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.76 | ₹47.60 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.60 | ₹1,380.00 |
| 1,000+ | ₹4.55 | ₹4,550.00 |
10 × ₹4.76
₹47.60
excl. GST
₹56.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT585B9V1T-7
₹47.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 500nA@6V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 8.92V~9.28V
- Zener Voltage(Nom)
- 9.1V
- Impedance(Zzk)
- 100Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
Key features
- ±2.0% Tolerance on Breakdown Voltage
- Small, Low Profile Surface Mount Package
- Flat Lead Package Design for Low Profile and High Power Dissipation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX584B9V1-TP#C914306MCC · SOD-523 | MCC | SOD-523 | 7,260 | ₹6.19 · 7,260 in stock | View |
 | TPZ9V1C-523#C46641663TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,100 | ₹2.37 · 2,100 in stock | View |
 | MM5Z9V1T5GF#C3740161Nexperia · SOD-523 | Nexperia | SOD-523 | 195 | ₹25.55 · 195 in stock | View |
| MM5Z9V1ST1G#C891674onsemi · SOD-523 | onsemi | SOD-523 | 755 | ₹21.94 · 755 in stock | View | |
 | BZX584B9V1#C51315210CBI · SOD-523 | CBI | SOD-523 | 2,700 | ₹1.89 · 2,700 in stock | View |
