NexperiaDatasheet (PDF)

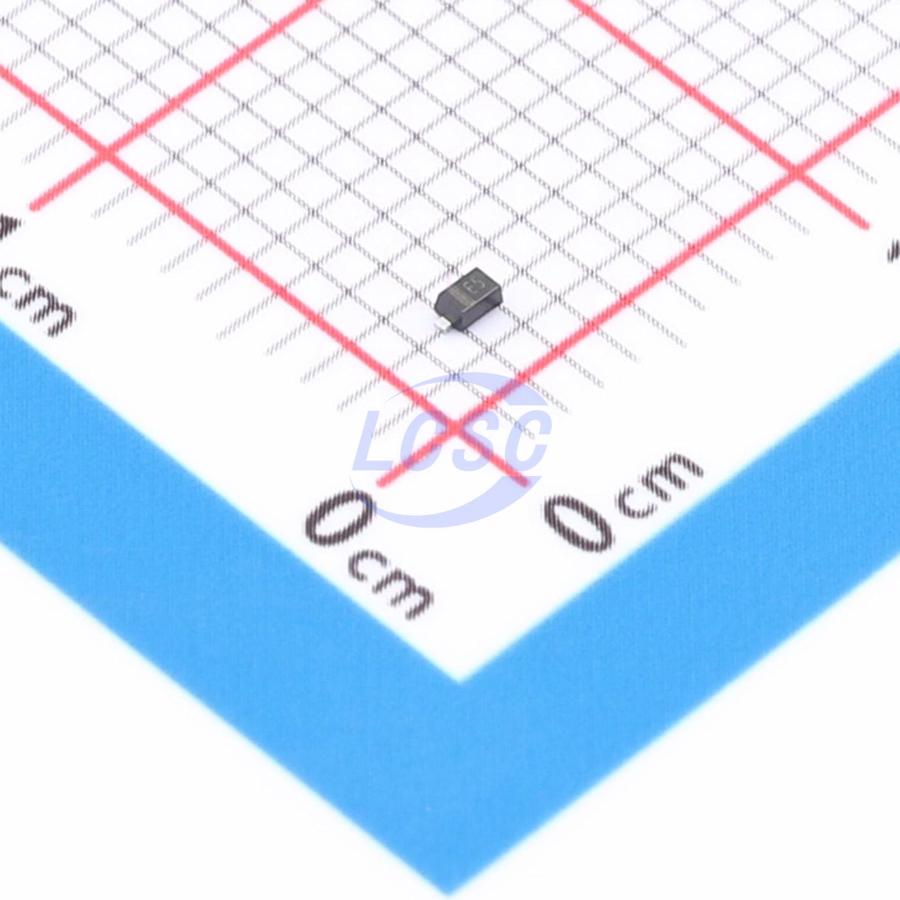

MM5Z9V1T5GF
1 Independent 8.92V~9.28V 9.1V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- MM5Z9V1T5GF
- Store part #
- C3740161
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C3740161
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.55 | ₹127.75 |
| 50+ | ₹24.94 | ₹1,247.00 |
| 150+ | ₹24.52 | ₹3,678.00 |
| 500+ | ₹24.11 | ₹12,055.00 |
5 × ₹25.55
₹127.75
excl. GST
₹150.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM5Z9V1T5GF
₹127.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@6V
- Zener Voltage(Range)
- 8.92V~9.28V
- Zener Voltage(Nom)
- 9.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: ± 2%
- Wide working voltage range: nominal 2.4V to 36V
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT585B9V1T-7#C444980DIODES · SOD-523 | DIODES | SOD-523 | 60 | ₹4.76 · 60 in stock | View |
 | BZX584B9V1-TP#C914306MCC · SOD-523 | MCC | SOD-523 | 7,260 | ₹6.19 · 7,260 in stock | View |
 | BZT52C9V1T-7#C507916DIODES · SOD-523 | DIODES | SOD-523 | On request | ₹8.28 · 0 in stock | View |
 | BZX58550-C9V1-QX#C3733801Nexperia · SOD-523 | Nexperia | SOD-523 | 99 | ₹32.82 · 99 in stock | View |
 | BZX584B9V1#C51315210CBI · SOD-523 | CBI | SOD-523 | 2,700 | ₹1.89 · 2,700 in stock | View |
