NexperiaDatasheet (PDF)

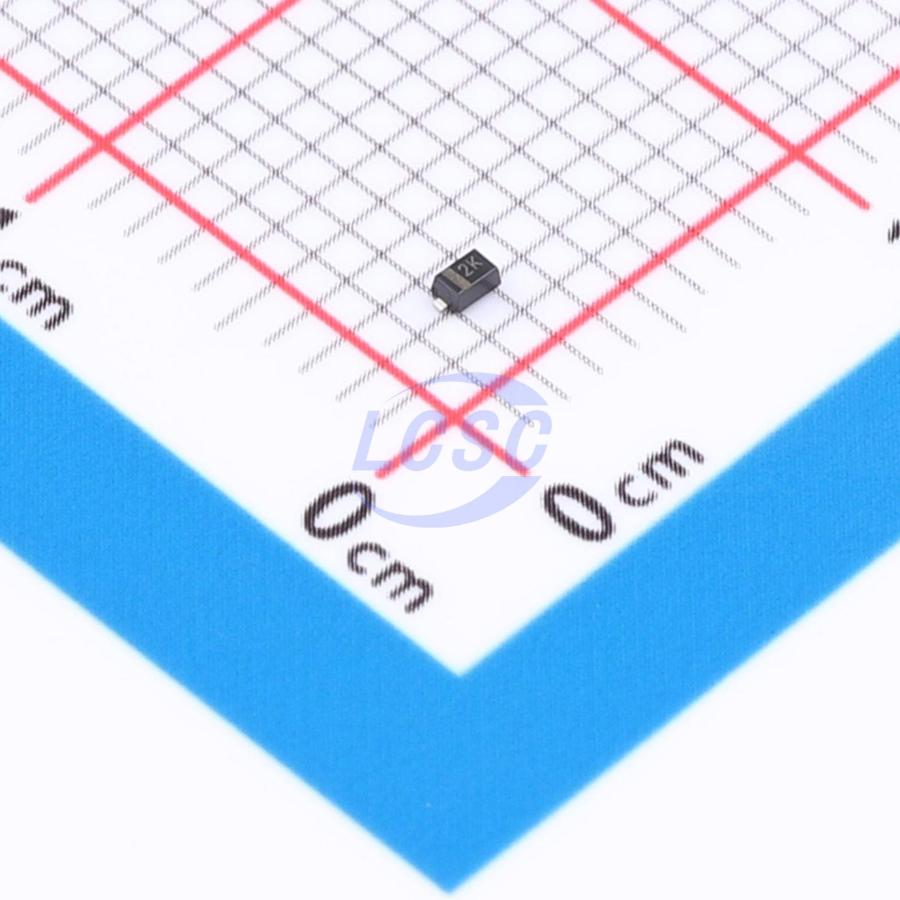

BZX58550-C9V1-QX
1 Independent 8.65V~9.56V 9.1V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX58550-C9V1-QX
- Store part #
- C3733801
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C3733801
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹32.82 | ₹32.82 |
| 10+ | ₹32.18 | ₹321.80 |
| 30+ | ₹31.53 | ₹945.90 |
| 100+ | ₹31.09 | ₹3,109.00 |
1 × ₹32.82
₹32.82
excl. GST
₹38.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX58550-C9V1-QX
₹32.82 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@6.9V
- Zener Voltage(Range)
- 8.65V~9.56V
- Zener Voltage(Nom)
- 9.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Overview
Low- current voltage regulator diodes in an SOD523 (SC- 79) ultra small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low-current general regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Tolerance series: approximately ± 5%
- Working voltage range: nominal 1.8 V to 10 V
- Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C9V1T-7#C507916DIODES · SOD-523 | DIODES | SOD-523 | On request | ₹8.28 · 0 in stock | View |
 | MM5Z9V1T5GF#C3740161Nexperia · SOD-523 | Nexperia | SOD-523 | 195 | ₹25.55 · 195 in stock | View |
 | DDZ9696T-7#C7264866DIODES · SOD-523 | DIODES | SOD-523 | 1,970 | ₹7.16 · 1,970 in stock | View |
 | TPZ9V1C-523#C46641663TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,100 | ₹2.37 · 2,100 in stock | View |
 | BZX584C9V1#C46641690TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,550 | ₹2.26 · 2,550 in stock | View |
