NexperiaDatasheet (PDF)

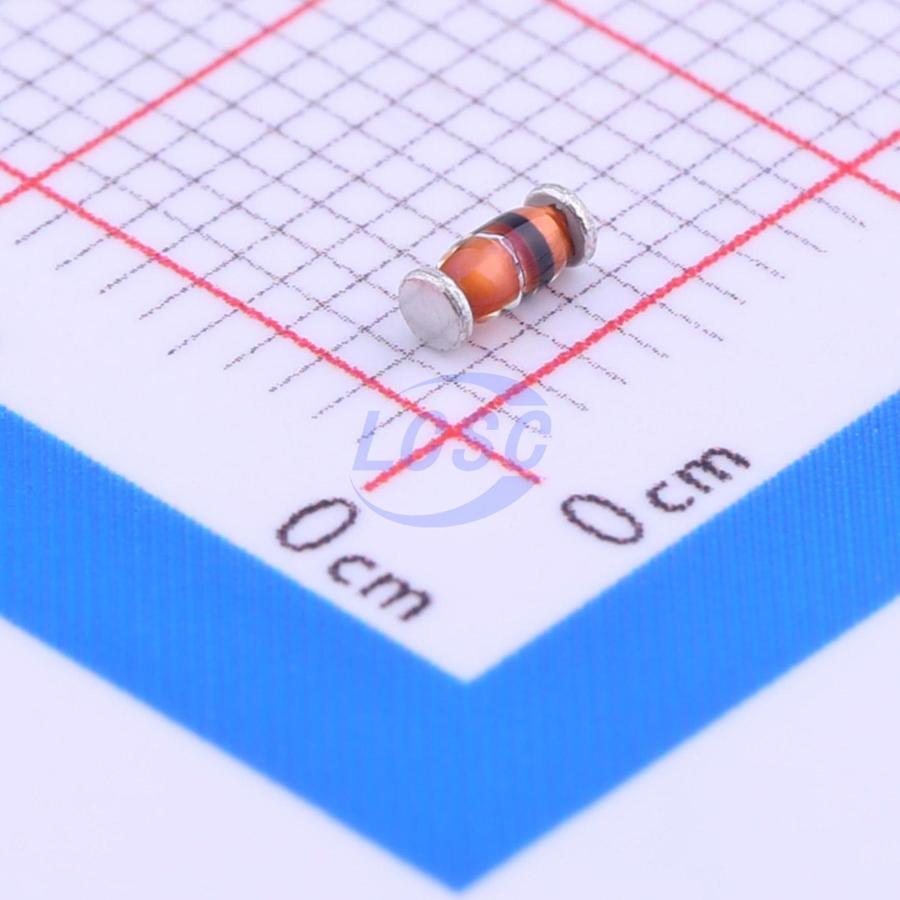

BZV55-B16,115
Zener Diode 16V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 16V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B16,115
- Store part #
- C282533
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
785 in stock
#C282533
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.87 | ₹94.35 |
| 50+ | ₹15.33 | ₹766.50 |
| 150+ | ₹13.56 | ₹2,034.00 |
| 500+ | ₹12.24 | ₹6,120.00 |
| 2,500+ | ₹9.29 | ₹23,225.00 |
| 5,000+ | ₹8.76 | ₹43,800.00 |
5 × ₹18.87
₹94.35
excl. GST
₹111.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-B16,115
₹94.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@11.2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 15.7V~16.3V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TZMB16-GS08#C143071VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 1,370 | ₹9.50 · 1,370 in stock | View |
 | BZV55-C16,115#C128822Nexperia · SOD-80C | Nexperia | SOD-80C | 1,380 | ₹7.83 · 1,380 in stock | View |
 | ZMM16B#C41781636YONGYUTAI · MiniMELF(LL-34) | YONGYUTAI | MiniMELF(LL-34) | 2,450 | ₹2.66 · 2,450 in stock | View |
 | ZMM16B#C5359986MSKSEMI · LL-34 | MSKSEMI | LL-34 | 1,400 | ₹3.72 · 1,400 in stock | View |
 | TLZ16C-GS08#C241952VISHAY · SOD-80 | VISHAY | SOD-80 | 60 | ₹3.28 · 60 in stock | View |
