NexperiaDatasheet (PDF)

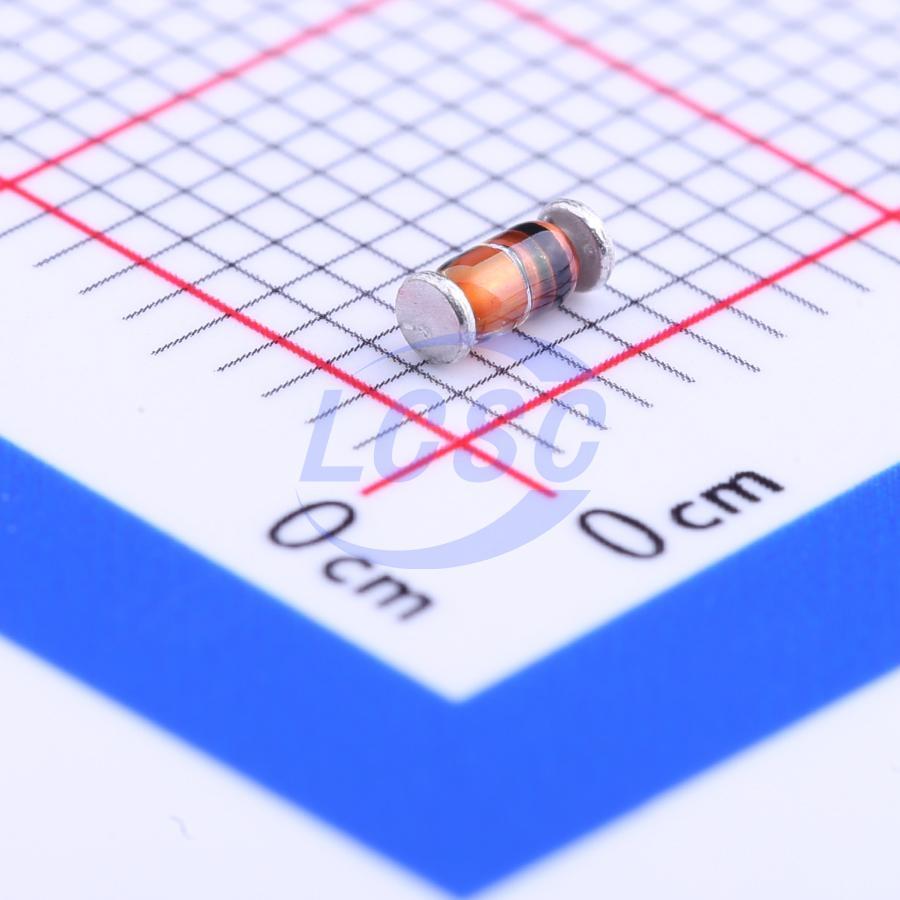

BZV55-C16,115
Zener Diode Independent 16V 500mW Surface Mount SOD-80C
SOD-80CROHS CompliantActive
DIODE ZENER 16V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C16,115
- Store part #
- C128822
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C128822
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 2,500+ | ₹4.68 | ₹11,700.00 |
| 5,000+ | ₹4.18 | ₹20,900.00 |
| 10,000+ | ₹3.93 | ₹39,300.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-C16,115
₹78.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@11.2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 15.3V~17.1V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.071 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-B16,115#C282533Nexperia · SOD-80C | Nexperia | SOD-80C | 785 | ₹18.87 · 785 in stock | View |
 | ZMM16-MS#C2982206MSKSEMI · LL34 | MSKSEMI | LL34 | 550 | ₹2.02 · 550 in stock | View |
 | ZMM16#C707206Slkor · LL-34 | Slkor | LL-34 | 1,200 | ₹1.23 · 1,200 in stock | View |
 | ZMM16V#C2891756YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 52,600 | ₹1.18 · 52,600 in stock | View |
 | BZV55C16#C545333LGE · LL-34 | LGE | LL-34 | 2,150 | ₹2.17 · 2,150 in stock | View |
